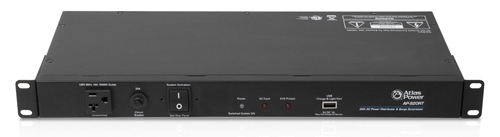

20A AC Power Distribution & AC Suppressor with Remote Activation

AP-S20RT
  • UL Listed
  • CETL
  • ETL

    The AP-S20RT features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are incorporated to reduce noise and Electromagnetic Interference (EMI) from such items as electric motors and external switching power supplies. The benefit of these filters can be seen on video products or audibly by reducing static pops and external signal interference.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S20RT's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds, thus ensuring virtually trouble-free protection. If damage to the suppression circuitry occurs, the AC fault LED will illuminate.

    The AP-S20RT incorporates EVS (Extreme Voltage Shutdown) to remove AC power from devices plugged into the switched outlets in the event of unsafe high or low voltage conditions. A convenient front panel LED indicates if shutdown has occurred.

    The AP-S20RT also features a Remote Activation feature.  This Remote Activation feature allows up to 20A of clean electrical power to be switched On or Off with a simple latched dry contact closure. With the closure of the remote activation switch, 12VDC at 100mA is available to power a remote status LED.  An Emergency Power Down function, or EPD, can also be created by using the Remote Activation feature by simply keeping the Remote Activation contact closed until a condition occurs that requires a system shut down. When the contacts are opened, it will remove power from the switched outlets to protect equipment. A rear mounted bypass switch disables the Remote Activation should the need arise.

    FEATURES
    9 Total Outlets
    6 Rear Panel Switched Outlets
    2 Rear Panel Unswitched Outlets
    Remote Activation Via Latched Dry Contact Closure or DC Voltage
    Remote Status LED Power Terminals
    1 Front Panel Unswitched Convenience Outlet
    Rear Mounted Remote Activation Bypass Switch
    EPD (Emergency Power Down) to Incorporate with Fire Control Panels
    Extreme Voltage Shutdown (EVS) Below 101V or Above 132V AC Line
    Radio Frequency and Electromagnetic Interference Filtering
    Circuit Breaker Protection 20A
    Rear Mounted XLR Connector for 12VDC LED Lamp (AP-GNL18)
    Front Mounted USB Charger/Light Port
    SPECIFICATIONS
    Current Rating 20 Amps
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    Remote Activation Latching Type Dry Contact Closure or 5V-24VDC
    AC Mains Power Cord 9' (3m)
    Height 1.75" (44.5mm)
    Depth 8.0" (203mm)
    Width 19" (482.6mm)
    Weight 5.5 lbs. (2.49 kg)
    SUPPORT FILES

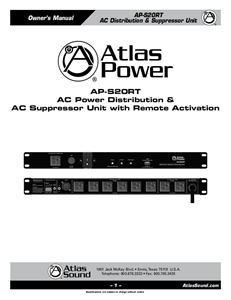

    Owners Manual ATS004051B_AP-S20RT_Owners_Manual (12 pages) View | Download

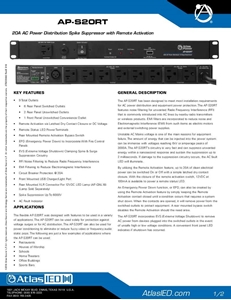

    Data Sheet AP-S20RT Data Sheet (2 pages) View | Download
