Horn Speaker with 15-Watt 25V/70V/100V Transformer

AP-15T
Availability: Call for Availability
MSRP (USD): $167.99
  • IP34
  • 25V/70V Operation
  • 70V100VCAPABLE
    DESCRIPTION

    Model AP-15T is a double re-entrant speakers which deliver 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

    The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

    The trademarked squared-bell design signifies AtlasIED quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for speaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

    AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.



    Conduit/cable plate adapter also available.






    FEATURES
    • Grey Finish
    • Environment Resistant for Outdoor and Indoor Use
    • High-Efficiency Driver with Proven Performance Reliability
    • Omni-Purpose™ Bracket for Precise Positioning
    • Superior Intelligibility for Voice and Tone Signaling
    • Transformer Equipped for Versatile 25, 70.7, or 100V Line Applications
    • World Recognized for Quality and Dependability

    SPECIFICATIONS
    Frequency Response 400Hz - 14kHz
    Sensitivity 106dB
    Power Taps 1, 2, 3.8, 7.5, 15 @ 70.7V
    Dispersion 70°
    Operating Temperature Range -40 to 70C
    Height 8 3/4" (22.23 cm)
    Width 7 7/8" (20.00 cm)
    Depth 9 5/16" (23.66 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

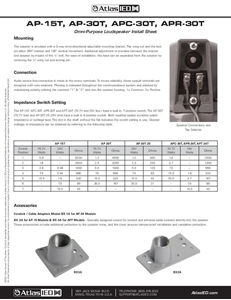

    AP-15T, AP-30T, APC-30T, APR-30T Install Sheet (1 page)
