8" 2-way Stadium Horn Loudspeaker System 65° x 65°

AH66-8T-BSG
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • 60°H x 60°V Coverage
  • Non-Powered
  • IP54

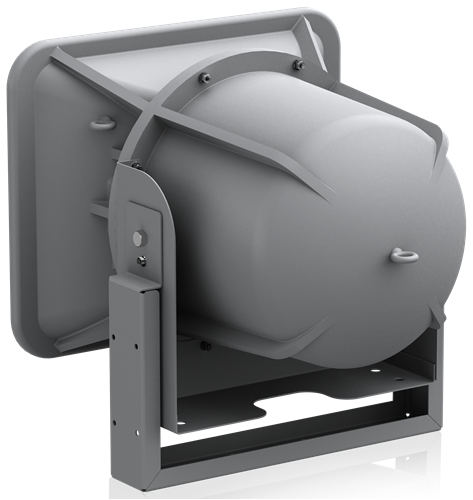

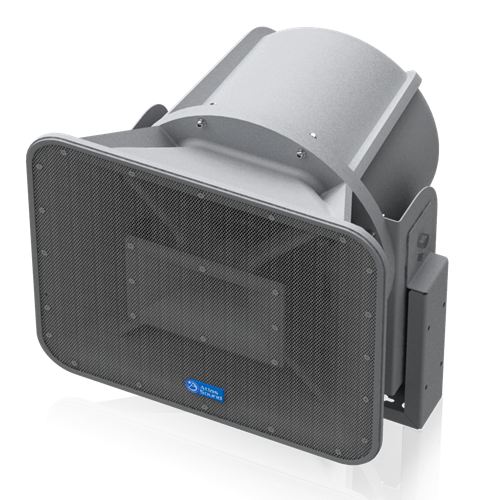

    AtlasIED model AH66-8T-BSG  "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

    Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

    Weather resistant construction features of the AH66-8T-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 8" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

    Learn more about the importance of protecting paging horns from low frequency damage and view the a href="/Solutions/PartNumber/TSD-HF11.html" target="_blank">TSD-HF11 unit designed specifically to protect horns from low frequency damage.

    Features
    100 Watts Power Handling
    Constant Directivity Design Offers Controlled Coverage of 65° Horizontal by 65° Vertical (2kHz Octave Band)
    Driver Compliment Includes 8" Cast Frame Woofer with a Concentrically Mounted 1" Exit Compression Driver Coupled to a 65°H x 65°V HF Horn
    Efficiency Rating of 100dB (1W/1m)
    Heavy Duty Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
    Maximum Output of 120dB (Rated Power @ 1M)
    Battleship Gray Finish
    Tech Specs
    Power Taps 7.5, 15, 30, and 60 Watts & 8Ω
    Sensitivity 100dB SPL
    Frequency Response 90Hz - 15kHz
    Driver Type 1" HF and 8" LF
    Dispersion 65° x 65°
    Power Rating 100 Watts
    Height 20.95" (53.21cm)
    Width 17.91" (45.49cm)
    Weight 61.00 lbs (27.67 kgs)
    Support Files
    CAD Drawing AH66CD8 CAD Drawing Download
    AH_Brochure (4 pages) View | Download
    Data Sheet ATS004766 AH66-8T-BSG Data Sheet RevA (4 pages) View | Download
    Installation Sheet AH Series PoleStar Install Parts Guide (5 pages) View | Download
    Installation Sheet ATS004338_AH_Series_LoudSpeakers_Install_Sheet (11 pages) View | Download
    Revit Drawing AH66-8T-BSG Revit Drawing Download
