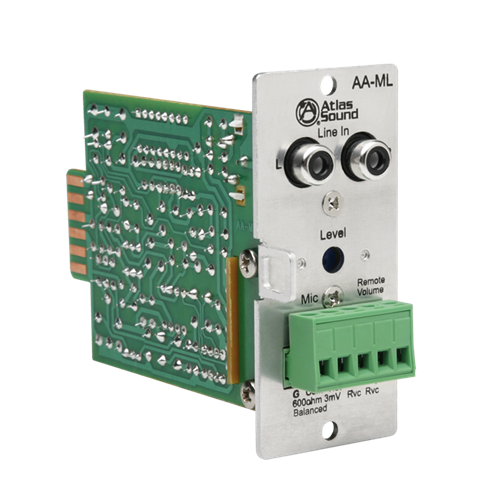

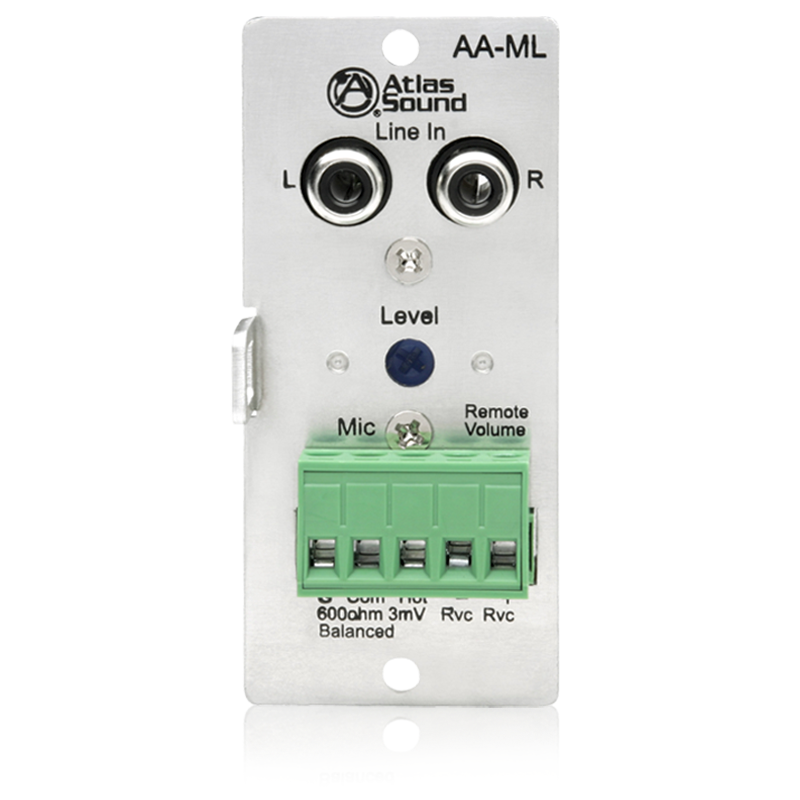

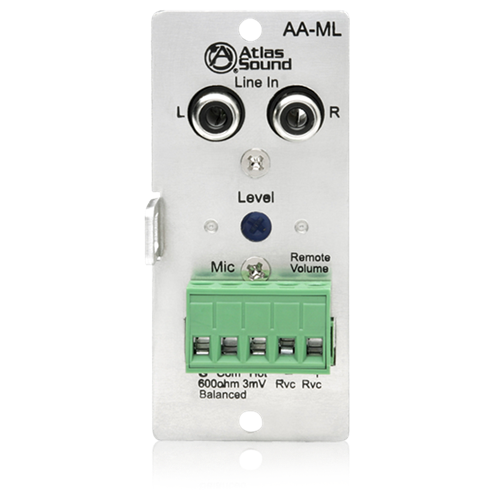

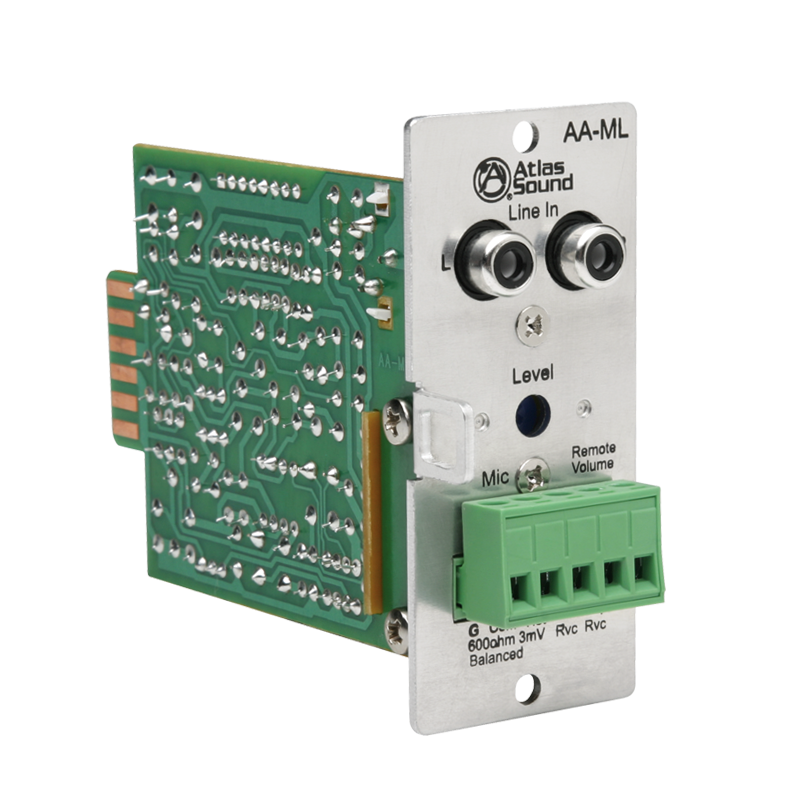

Mic / Line input module for the AA120M

    The AA-ML is an accessory input module for the AA120M. When inserted into the AA120M it can be used as an additional Line or Mic input. Unit features a level control, RCA summing jacks for unbalanced line level signals, Phoenix style input for mic level signals with switchable 18V phantom power supply, remote VCA level control and 6 dB/octave high pass filter (-3 dB @ 300 Hz). Hote: HPF is only functional for Mic input.

    • Balanced Mic Input
    • Front Panel Level Control
    • Mic / Line Input Selectable
    • Summing Unbalanced Input

    Connector Type Phoenix Connector
    Sensitivity 300mV
    Warranty Period 36 months from date of purchase

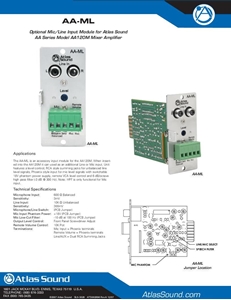

    AA-ML Datasheet (1 page) AA-ML Datasheet (1 page)

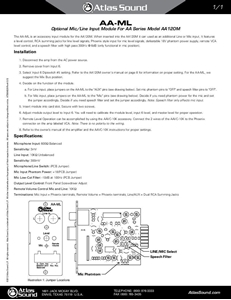

    AA-ML Install Sheet (1 page) AA-ML Install Sheet (1 page)
