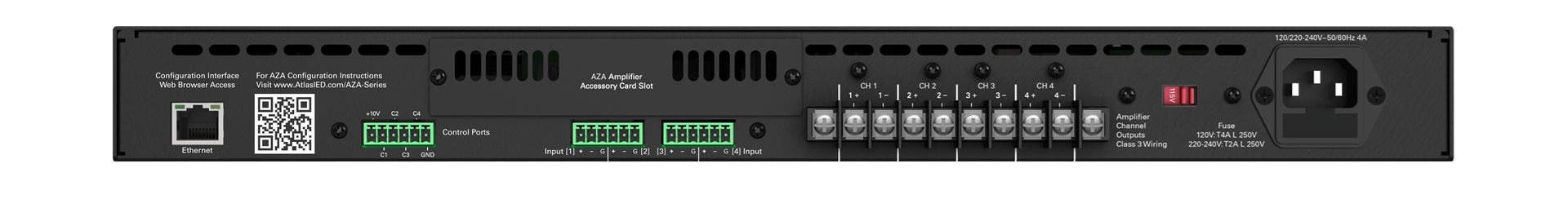

400-Watt Networkable 4-Channel Power Amplifier

Availability: In stock
Your Price:
  • 70V / 100V Operation
  • Network Ready

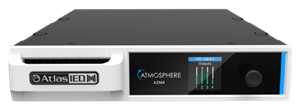

    The AtlasIED Atmosphere AZA404 four-channel amplifier is designed to interface with the Atmosphere family of products, such as the AZM series of processors. The AZA amplifiers can be configured in pairs to deliver up to 100W per channel into both low and high impedance speaker loads (4Ω/8Ω/70V/100V).

    The AZA404 is ready to use out of the box in four-channel, 70V mode, with no additional configuration or network connectivity required, making them easily paired for use with AtlasIED Atmosphere signal processors.

    • 70V, 100V, 8Ω, or 4Ω functionality, configurable in channel pairs
    • Up to 100W per channel (4 x 100W)
    • Four (4) balanced inputs
    • Web interface to change output modes and additional monitoring/processing
    • Optional Accessory Card Slot for a Four-Channel Dante™ Receiver (DPA-DAC4)

    Power Output 4 x 100-Watts @ 70.7V
    Power Output 4 x 100-Watts @ 100V
    Power Output 4 x 75-Watts @ 8Ω
    Power Output 4 x 50-Watts @ 4Ω
    Power Output 2 x 100-Watts @ 70.7V, 2 x 75-Watts @ 8Ω
    Power Output 2 x 100-Watts @ 100V, 2 x 50-Watts @ 4Ω
    Amplifier Topology Class AB Switching Hybrid -BASH
    Input Sensitivity 750mV Balanced, 0dBU
    Input impedance Balanced 40k
    Maximum Input Signal +14dBU Inputs 1-4, +7dBU Inputs 5-8 with Dante™
    THD 1% @ Rated Output
    Frequency Response 20Hz - 20kHz (DSP Filters Set to Flat)
    Signal to Noise Ratio >100dB Below Rated output (A-Weighted)
    Crosstalk 73dB @ 1kHz
    Voltage 110V - 120V & 220V - 240V Auto Switch Over, 50/60Hz
    Rack Units 1
    Height 1.75" (45mm)
    Width 19" (483mm)
    Depth 15.5" (394mm)
    Weight 13 lbs. (5.92kg)
    Warranty Period 36 months from date of purchase

    AZA Webpage Firmware AZA Webpage Firmware
    AZA Amplifier Discovery Software AZA Amplifier Discovery Software
    AZA404 / AZA804 Manual (24 pages) AZA404 / AZA804 Manual (24 pages)
    Atmosphere EC Declaration of Conformity (1 page) Atmosphere EC Declaration of Conformity (1 page)

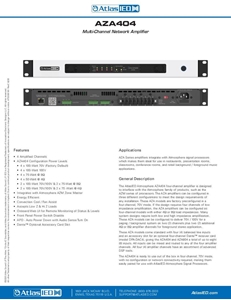

    AZA404 Data Sheet (6 pages) AZA404 Data Sheet (6 pages)
