Premier Media Player for GDS-4W™ Digital Signage Platform

4WPLAYER2

    The 4WPLAYER2 is a premier media player providing “best-in-class” performance within the GDS-4W™ Digital Signage Platform. It
    incorporates an Intel® Celeron® Processor and HD graphics card offering dual display output capability with up to 1080P@ 60fps resolution. Connection to the dual display devices can be achieved via the two HDMI connections. The same HDMI ports also provide audio from 2-channel stereo up to 7.1 surround channels. The 4WPLAYER2 connects to the network via redundant dual RJ-45 Ethernet ports or Wi-Fi 802.11ac connection. The unit has a 500GB storage drive and up to 8 GB memory. Each 4WPLAYER2 includes the GDS-4W™ Client Application that runs as a background service in the players operating system with setup easily done within the GDS-4W™ Server Application.

    The player receives content from the server, stores locally onto the device, and automatically displays the generated media to the connected video displays. Storing the content locally onto each 4WPLAYER2 provides media to still be displayed even in the event of local area network failure or disconnection.

    The 4WPLAYER2 provides a secure installation through a VESA / wall mount plate mount and Kensington lock option. A simple installation is achieved through a steady data stream via integrated gigabit Ethernet, onboard HDMI and VGA ports providing smooth HD video playback for a true plug and play experience.

    The 4WPLAYER2 with GDS-4W™ Client Application provides enterprisegrade digital signage to a GLOBALCOM.IP system. With GDS-4W™, facilities can visually engage customers, employees, and visitors across displays and mobile devices throughout a building.

    • Advertise products and services
    • Share calendar events
    • Show news information
    • Display emergency alerts
    • Provide interactive wayfinding
    Features
    Enterprise-grade digital signage performance
    Intel® Celeron® Processor and HD graphics card
    Supports up to 1080P @ 60fps resolution on a single display monitor
    500GB storage drive with optimized thermal control to best handle harsh environments
    8GB RAM memory
    Small form factor with VESA / wall mount plate mount
    Tech Specs
    RAID Intel® Celeron® N3060 1.6-2.48Ghz 2MB Cache
    Video Output 2 x HDMI v1.4b
    Storage Up to 500GB mSATA
    USB 4 x USB 3.0 (Front), 1 x USB 2.0 (Front), 2 x Micro USB 2.0 (side)
    Power Supply Internal 50W
    Power Consumption 15W
    Dimensions (HxWxD) 7.5" W x 1.75" H x 4.25" D (191mm x 46mm x 108mm)
    Weight 3 lbs / 1.4 kg
    Support Files

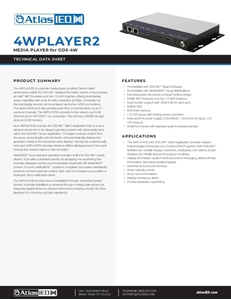

    Installation Sheet 4WPLAYER2 Data Sheet (4 pages) View | Download
    Software/Firmware 4WPLAYER2 Drivers Download
