12" Coaxial Compression Driver with 60-Watt 70V/100V Transformer

12CXT60
  • 70V100VCAPABLE
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL

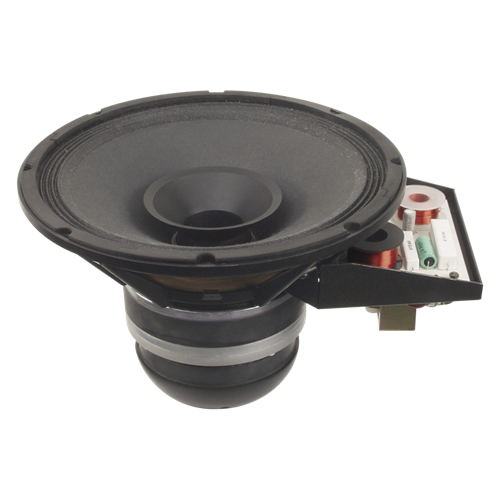

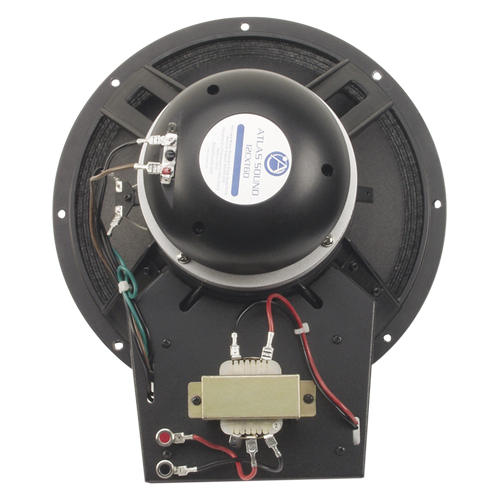

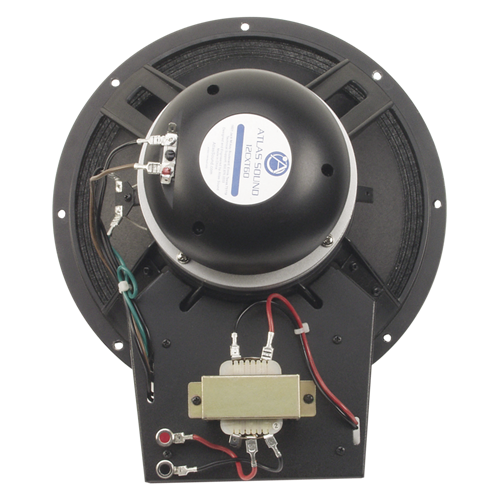

    Model 12CXT60 is a 250 watt loudspeaker that combines a 12" diameter, low frequency transducer and a 1" exit, true compression driver. With the addition of a factory installed, high efficiency, 60W, 70.7/100V step down line transformer.

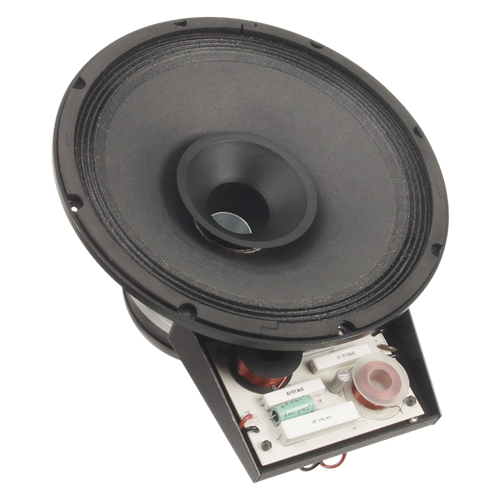

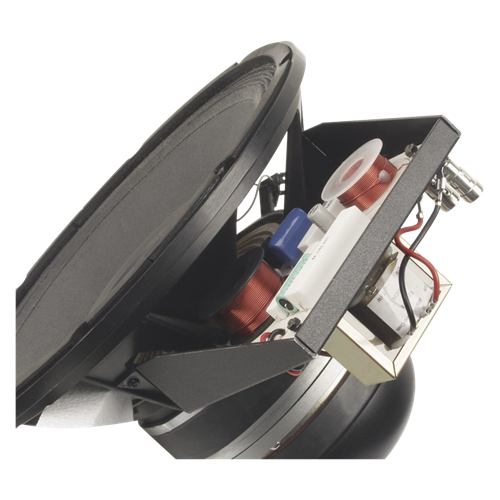

    The unit features a curvilinear, treated paper cone for lower harmonic distortion and a built-in crossover network for proper frequency transition between the two reproducers.

    Model 12CXT60 operates within a frequency response range of 45Hz -18kHz with a sensitivity of 99dB and a dispersion angle of 90° (-6dB/2kHz octave band).

    Features
    1" Exit Compression Driver Coupled to a Specially Designed Conical Wave-Guide Horn
    90 Degree Conical Dispersion (2 kHz Octave Band)
    High Efficiency Cone Woofer Optimally Matched to High Frequency Device via a Specially Designed Crossover to Insure Even Transition
    Perfectly Suited for Use with Atlas Sound "Q" Series Enclosures
    Tech Specs
    Frequency Response 45Hz - 18kHz
    Sensitivity 95.5dB (1W/1m) Average
    Power Taps 7.5, 15, 30, 60
    Speaker Type Compression Driver Coaxial
    Dispersion 90°
    Depth 8" (20.32 cm)
    Shipping Weight 27.00 lbs (12.27 kgs)
    Support Files
    Data Sheet 12CX_12CXT Data Sheet (5 pages) View | Download
    CAD Drawing 12CXT60 CAD Drawing Download
    EASE File Download
    Loudspeaker Placement Tool

    The AtlasIED Loudspeaker Placement Tool is designed to make it easy to select the proper positioning of loudspeakers in a given room. Choose your AtlasIED loudspeaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.
