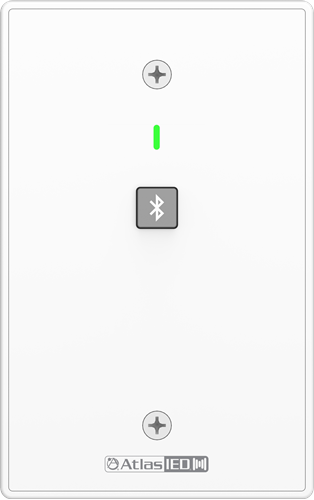

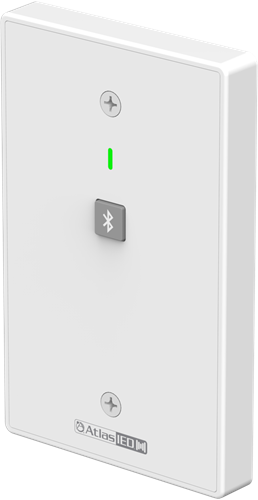

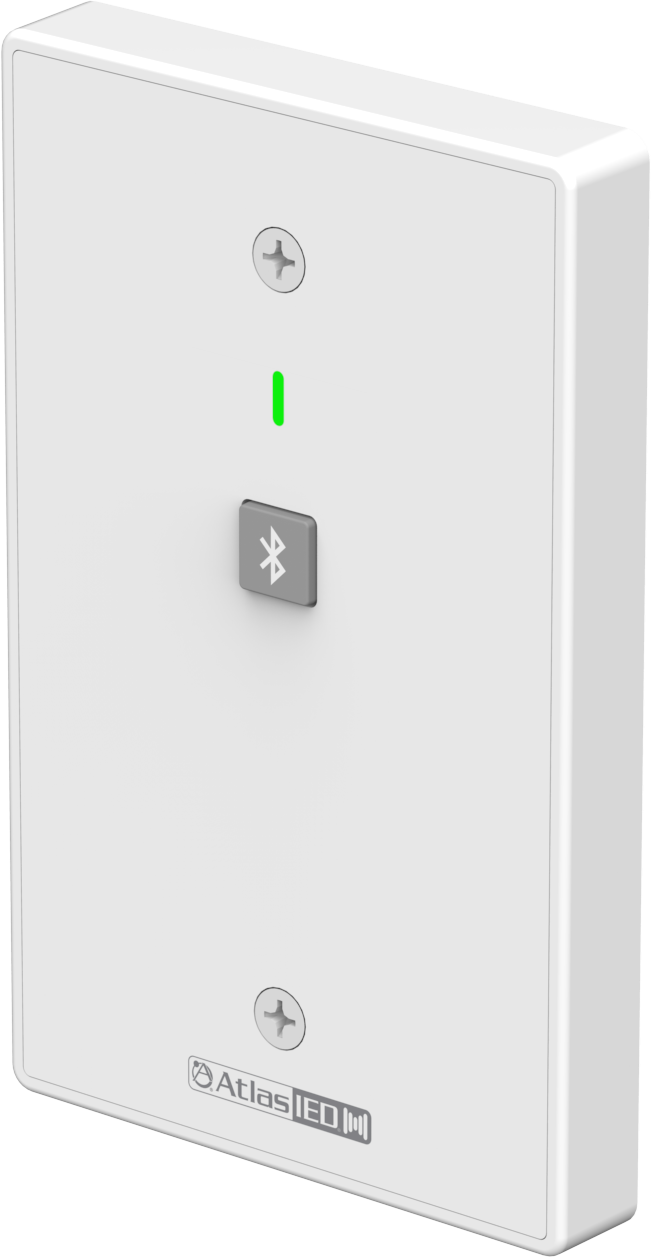

WTSD Bluetooth Receiver Wall Plate

The AtlasIED WTSD-BT provides remote Bluetooth audio input to any audio system with a balanced line input. The WTSD-BT audio wall plate requires a PWBOB analog interface box and external power supply to operate (both included). The WTSD-BT can be installed up to 330 ft (100 meters) from the amplifier, providing flexible placement options.

The WTSD-BT uses commercial-grade Bluetooth 5.1 technology featuring ultra-low noise performance, long-range connectivity, no auto-reconnect behavior, and a quick disconnect bump feature. The Bluetooth discovery ID name can be customized using the DMA Control iOS/Android app, allowing the broadcast to be tailored to the venue. Installation meets low voltage standards and is straightforward, with the wall plate fitting into a standard single gang electrical box or low voltage ring and requiring only 1.5 inches (38 mm) of clearance depth.

The AtlasIED WTSD proprietary low voltage bus is designed to support a single wall plate or multiple WTSD devices. Up to three WTSD devices can be daisy-chained on the same bus, with audio from each device summed together while maintaining independent control.

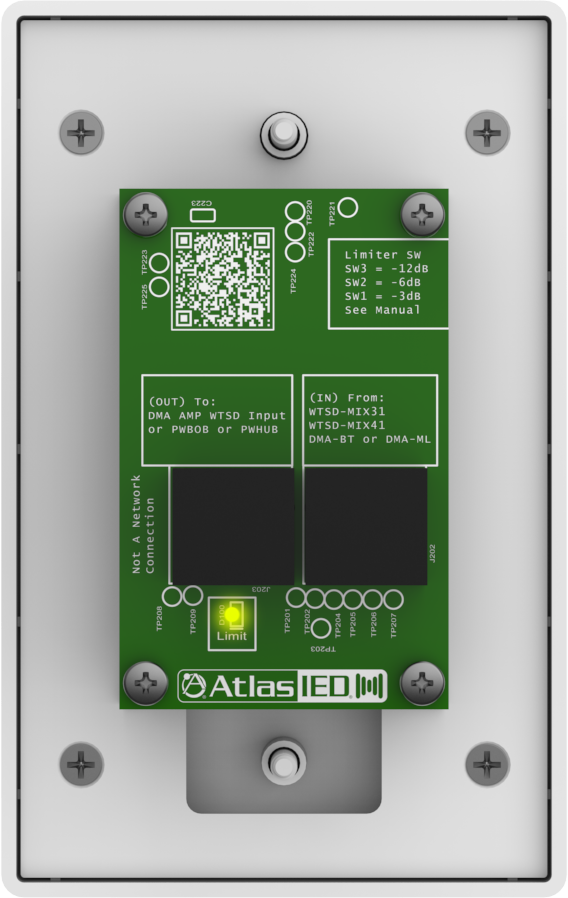

The WTSD-BT includes an onboard signal limiter to manage the level placed on the summed bus, with adjustable settings from –3 dB to 21 dB. The DMA-BT faceplate provides signal and limiter status indicators.
