Two Channel Mixer

Availability: In stock
Your Price:
  • Power Supply Sold Separately
  • CE

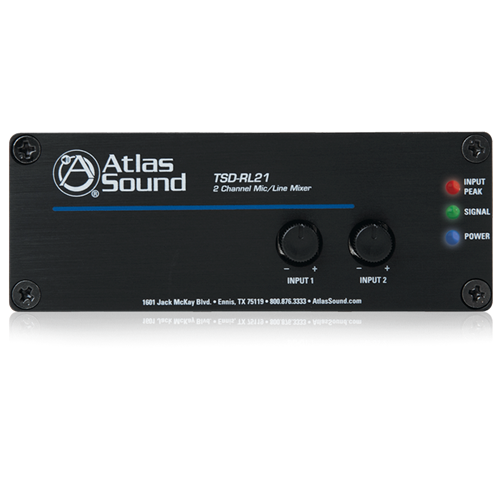

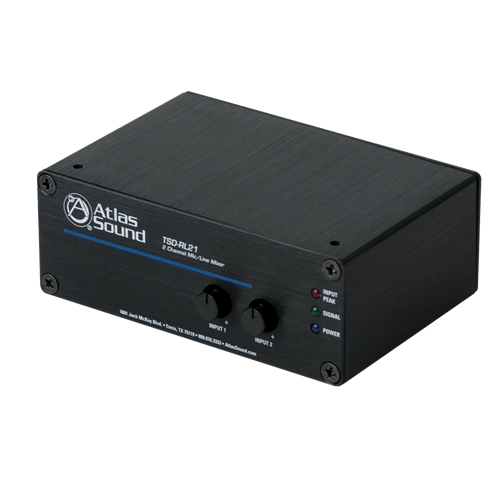

    The versatile AtlasIED TSD-RL21 2x1 mic/line mixer is ideal for applications where paging, public address, and BGM music is required. Use as a standalone remote mixer or in conjunction with AtlasIED power amplifiers in applications such as conference center meeting rooms, football stadiums, gymnasiums, retail/hospitality or other areas requiring versatile, multi-source mix control.

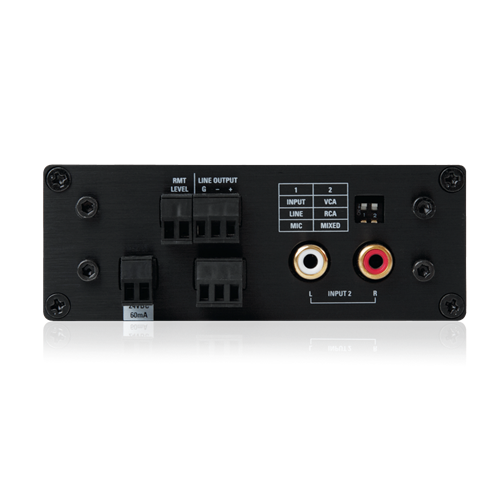

    Channel one may be configured via rear panel dipswitch to accommodate mic or line level while channel two features a stereo summing RCA line level input. Both inputs are adjustable by front panel controls with removable knobs, which may be easily replaced by security, covers to prevent tampering.  The remote level control feature allows use of the AtlasIED AAVC-10K (or equivalent) decorative wall plate control for convenient remote adjustment of either the entire mix bus or RCA input 2 only (the typical BGM input).

    The TSD-RL21 is highly efficient and meets Energy Star standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices.  Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 60mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

    • One (1) Mic/Line Input
    • One (1) Summing RCA Line Input
    • Remote Level Control Assignable Mix Bus or Input 2 Only
    • Balanced Mono Line Out
    • Input & Peak Signal Indicator LED'
    • High Gain Output for Driving Long Balanced Lines
    • Removable Phoenix Style I/O Connectors
    • Security Covers Included for All Front Panel Controls
    • Energy Efficient
    • Power Supply Sold Separately

    Unbalanced Input Impedance 10KΩ
    THD .06% & 1kHz
    Input Level 316mV (-10dBV)
    Balanced Input Impedance 1.2KΩ Balanced, 600Ω Unbalanced
    Line Input Level 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
    Mic Input Level 46dB Gain 10mV (-40dBV) Balanced
    Balanced Line Output Impedance 300Ω Balanced, 150Ω Unbalanced
    Line Output Level 1V (0dBV) In
    Frequency Response 20Hz - 20kHz (+/-1dB)
    Signal to Noise Ratio Line to Line 85dBV
    Signal to Noise Ratio Mic to Line 70dBV
    24VDC Power Requirements 60mA
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    Voltage Compatibility 24V
    Warranty Period 36 months from date of purchase

    TSD0RL21 Datasheet (3 pages) TSD0RL21 Datasheet (3 pages)
    TSD Series CAD Drawing TSD Series CAD Drawing

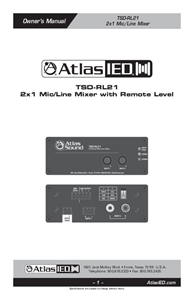

    TSD-RL21 Owners Manual (12 pages) TSD-RL21 Owners Manual (12 pages)
