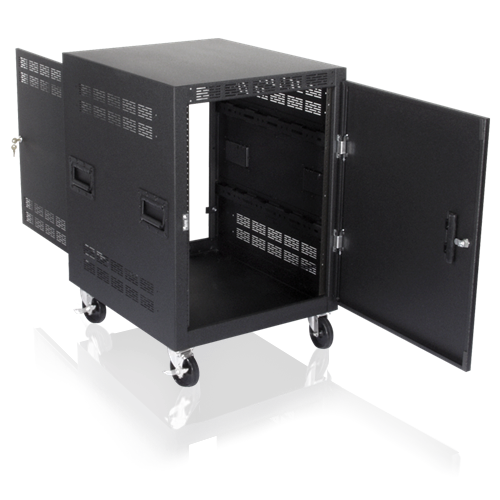

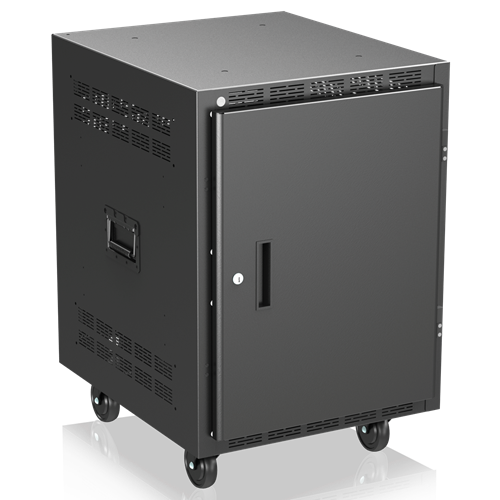

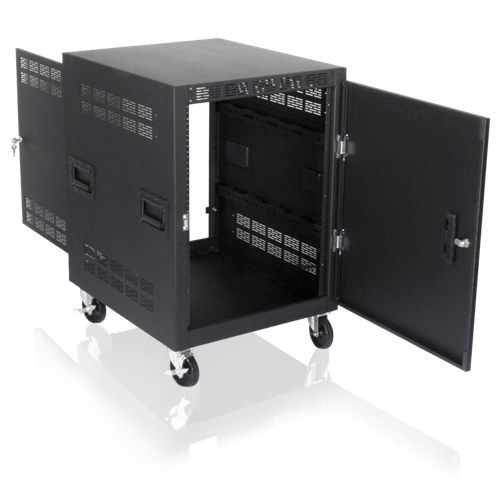

25 inch Deep, 14RU Mobile Equipment Rack Includes: Casters, Side Handles, and Solid Doors

RX14-25SFD
Availability: In stock
Your price (USD): $872.99
  • TAA
  • BAA
    DESCRIPTION
    The RX14-25SFD mobile cabinet is ruggedly constructed of 16-gauge CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.

    Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

    Cabinet is 25 1/2" deep and has a vertical panel space height of 24 5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.

    Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1 1/2" x 3") in the rear base flange. The units’ four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.

    Also include vented and removable locking doors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to
    1 1/2" from the front of the rail. Cabinet is finished in #962 black epoxy.

    FEATURES
    • 16-Gauge CRS Frame Manufactured to E.I.A. Standards
    • Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
    • Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
    • Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
    • Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
    • Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience
    • RR14 Optional Rear Mounting Rails Available
    • Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
    • Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
    • Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
    • Welded Frame for Long-Lasting Durability

    SPECIFICATIONS
    Rack Units 14
    Height 33 9/16" (85.25 cm)
    Width 22 5/16" (56.68 cm)
    Depth 25 1/2" (64.77 cm)
    Usable Depth 24" (60.96 cm)
