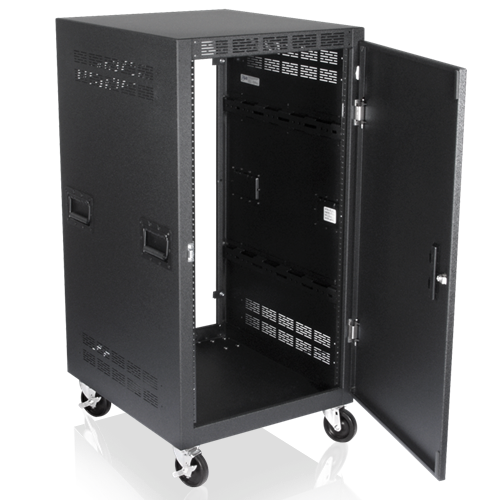

30 inch Deep, 21RU Mobile Equipment Rack Includes: Casters, and Side Handles

RX21-30
  • TAA
  • BAA
    The RX21-30 mobile cabinet is ruggedly constructed of 16-gauge CRS and include heavy-duty casters. Equipped with a front pair of 11-gauge CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.

    Optional RR21 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

    The RX21 features the additional benefit of having the supports positioned 19" apart to accept standard panel width accessories mounted in vertical orientation. Cabinet is 30" deep and has a vertical panel space height of 36 7/8" It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.

    Easy wiring access is provided through three wire isolation holes (two, 1 1/2" dia., and one oblong 1 1/2" x 3") in the rear base flange. The units' four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.

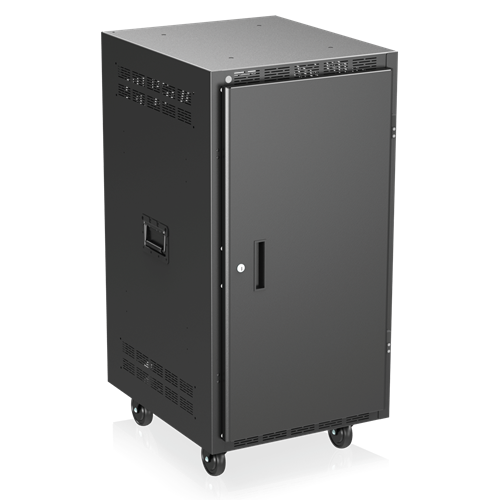

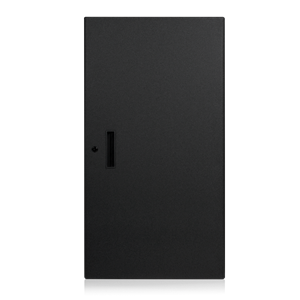

    Shown with optional front door: SFD21.

    Cabinet is finished in #962 black epoxy.
    FEATURES
    16-Gauge CRS Frame Manufactured to E.I.A. Standards
    Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
    Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
    Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
    Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
    Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience
    Optional Removable Front and Rear Doors (Right or Left-Hand Hinging) are Identically Keyed for Security and Convenience

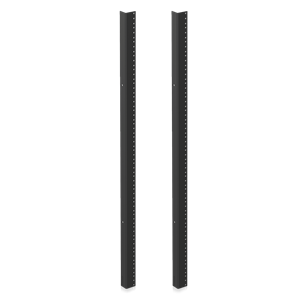

    RR21 Optional Rear Mounting Rails Available
    Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
    Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
    Three Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
    Welded Frame for Long-Lasting Durability
    SPECIFICATIONS
    Rack Units 21
    Height 45 3/4" (116.21 cm)
    Width 22 5/16" (56.68 cm)
    Depth 30" (76.2 cm)
    Usable Depth 28.5" (72.39 cm)
    SUPPORT FILES

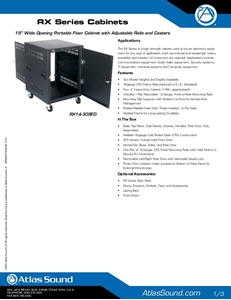

    Data Sheet
    ATS002778_RX_Series_Racks_data (4 pages)
