3-Input, 60-Watt Mixer Amplifier with Global Power Supply

MA60G
  • UL Listed
  • CE
  • CUL
  • 70V100VCAPABLE

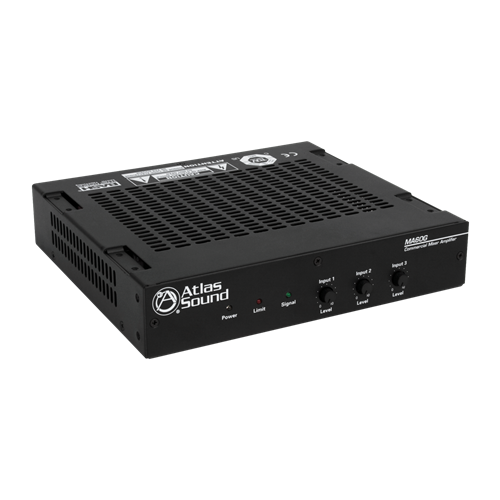

    Small and compact, and engineered for reliability, the AtlasIED MA60G amplifier is the perfect choice for distributed business paging and background music (BGM) systems, and small to medium speech privacy systems. It provides 60W into a 70.7V/100V line and has three total inputs including a balanced mic/line input featuring phantom power and variable mute sensitivity control as well as two unbalanced, summing line level inputs. Additional features include Removable Level Controls with set it and forget it security cover, contact closure mute terminals, and a global(100VAC-240VAC) power supply. The MA series of amplifiers are part of a new line from AtlasIED that are designed from the ground up and include the important features professional installation personnel require to meet or exceed their customer's expectations.

    FEATURES
    One Balanced Mic/Line/Tel Input w/Phantom Power
    2 Unbalanced, Summing Line Level Inputs
    Variable VOX Mute Sensitivity Control for Input 1
    Contact Closure Mute Terminals
    Global Power Supply, 100VAC-240VAC ~ 50/60Hz
    Compact 1RU, 1/2 Rack
    SPECIFICATIONS
    Frequency Response 50Hz - 20kHz
    Connector Type Phoenix and RCA
    Output Power 60 Watts
    Voltage Compatibility Universal
    SUPPORT FILES
    Owners Manual
    MA40G_MA60G Owners Manual (12 pages)
    Data Sheet
    ATS003838 MA40G-MA60G Data Sheet (2 pages)
    CAD Drawing
    MA60G
    Owners Manual
    MA40G MA60G Owners Manual (Spanish) (12 pages)
