PoE+ Indoor Wall Mount LED Display with Integrated Microphone

IPDCM-PLUS
  • CETL
  • G.711 Capable
  • G.722 Capable
  • Network Ready
  • GCK Optimized
  • InformaCast Compatible
  • SA-Announce Compatible
  • LED Display Included
  • PoE Enabled
  • One Cable Installation
  • Powered
    DESCRIPTION

    THIS MODEL HAS BEEN REPLACED BY MODEL IP-DM

    AtlasIED IPDCM+ is an indoor wall mount IP LED display with integrated talkback microphone. It leverages VoIP communication solutions to extend notifications with effective visual text alerts for high ambient noise areas or large spaces.

    AtlasIED IPDCM+ registers as a communication endpoint directly within InformaCast, SA-Announce and GCK Advanced Notification applications, supporting their visual text broadcast to enhance physical security while improving day-to-day communications through advanced alerting, bell schedules, pre-recorded & scheduled announcements, while leveraging the WAN/LAN Network Architecture.

    In addition to visual signaling, the IPDCM+ can provide audio to support distributed analog public address systems with the convenience of line level and amplified audio outputs. This line level output is ideal for use with AtlasIED AA, PA, DPA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V AtlasIED speakers or paging horn speakers.

    In addition to the line level output, the IPDCM+ provides 2-channels of 15-Watt RMS at 8-ohm amplified output to drive external speakers. It also includes 2 GPI inputs, 1 GPI output and a microphone input for talk back or listen applications.

    Under Title II of the ADA, all state and local governments are required to take steps and ensure effective communication to people with disabilities. The AtlasIED IPDCM+ display with talkback microphone provides effective communication for all individuals.

    Ideal for Corporate Applications, Education Institutions, Entertainment Complexes, Industrial Facilities, Government Buildings, Healthcare Facilities, Houses of Worship, Transportation Hubs - anywhere critical alerts / public address needs exist, and prefer using a single enterprise-class communications platform.

    Features

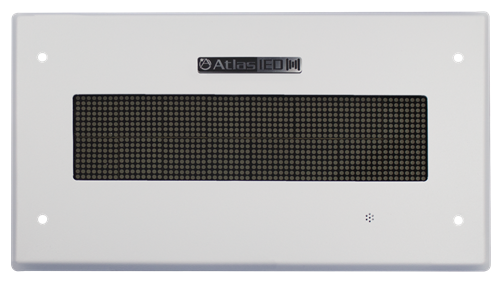

    The IPDCM+ IP displays are made of 18-gauge metal construction that provides security and durability in commercial applications. The baffle is finished in neutral white electrostatic powder coat and is packaged with all necessary mounting screws.

    While in Standby, the IPDCM+ displays save time and eliminates the need for a separate master clock system by utilizing national time synchronization protocol (NTP) to stay up to date. When active, the IPDC+ display changes from time to visual notifications by Scrolling text content over the 16 X 64 high-resolution LED digital readout.

    The IPDCM+ features include Auto-provisioning and auto-registration. This is an easy and timesaving way to configure our IP displays on your Voice VLAN, similar to a VoIP handset. By sitting on the same VLAN, both VoIP phones and IP displays share the same Quality of Service (QoS) so communications are always secure and guaranteed.

    Includes GPI/O ports offer trigger for critical alert notification, or unified connectivity of third party systems.

    Mounting hardware: (sold separately)

    • Wall – Flush (In-Wall): IPDC-FEC
    • Wall – Surface (On-Wall): IPDC-SEC

    Features
    • Auto Registration and Auto Provisioning
    • 16 x 64 LED Dot Matrix Display
    • Network Controlled, High Visibility Red LED Display
    • Multicast Enabled Network Clock Control
    • Cisco SRST compliant
    • Power Using IEEE802.3af Compliant PoE+ Switch or Local 12VDC-18VDC PSU

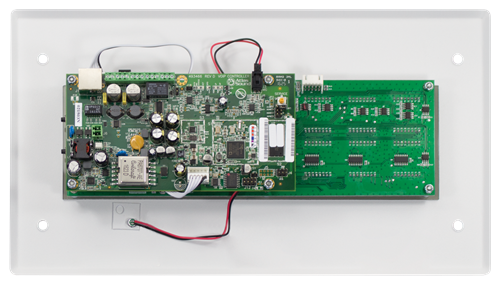

    • RJ-45 Female Input on PCB

    SPECIFICATIONS
    Width 13.89" (352.81mm)
    Height 7.75" (196.85mm)
    Depth 3.25" (82.55mm) Wall Mount
    Depth 3.11" (78.99mm) Flush Mount

    SUPPORT FILES
    Firmware Change log Firmware Change log
    IPDCM+ CAD Drawing IPDCM+ CAD Drawing
    IPDCM+ Enclosure CAD Drawing IPDCM+ Enclosure CAD Drawing
    IPDCM+ Revit Drawing IPDCM+ Revit Drawing
    IPDCM+ Datasheet (6 pages) IPDCM+ Datasheet (6 pages)
