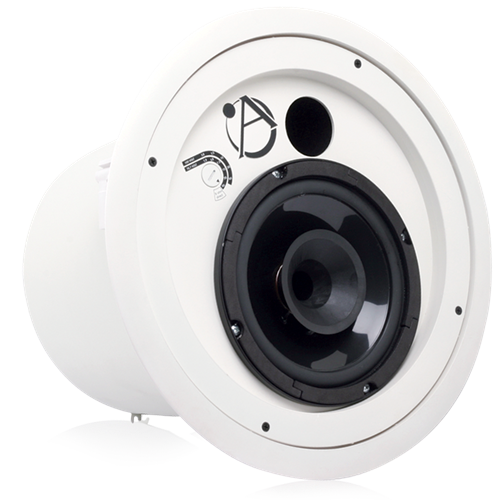

8" Compression Driver Coaxial In-Ceiling Speaker with 60-Watt 70/100V Transformer and Ported Enclosure

FAP8CXT
Availability: In stock
Your price (USD): $364.99
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation
    DESCRIPTION

    The AtlasIED FAP8CXT is a true compression driver premium performance 70.7V / 100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications -especially applications where high ceilings require speakers with increased efficiency and tighter pattern control.

    The FAP8CXT's 90° dispersion angle (in the 2kHz octave band) is perfect for higher ceiling applications where tighter pattern control is required. Tight pattern control (not exceeding 90°) is important for high ceiling applications. Speakers exhibiting wider dispersion than 90° will exceed 6dB of drop off at the edge of the coverage pattern causing excessive SPL variances. Using more of the same wide coverage speaker in a high ceiling application to compensate only worsens the situation as comb filtering from multi-path arrivals will result.

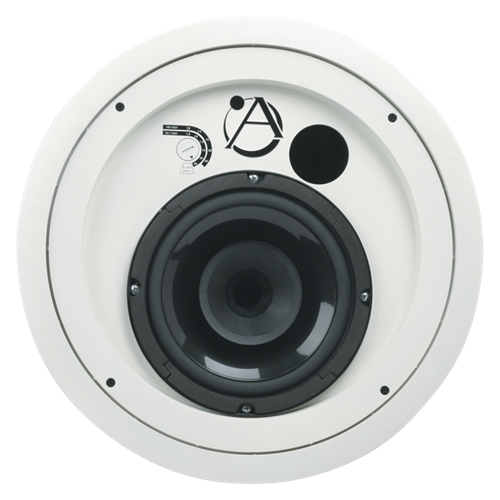

    The unit features a curvilinear, polypropylene cone for lower harmonic distortion, and a built-in crossover network for proper frequency transition between the two reproducers. This speaker is factory assembled to an optimally tuned & ported deep drawn enclosure and includes a specially designed 60 Watt low saturation 70.7V / 100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for instances where the 8Ω FAP8CXT driver is to be direct coupled with a low impedance amplifier.


    FEATURES

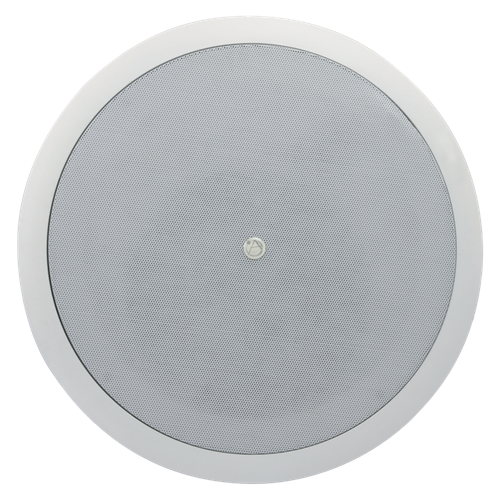

    • "Press -Fit" Grille to Better Blend into Contemporary Architecture
    • 1" Exit Compression High Frequency Driver Coupled to a Specially Designed Conical Wave-Guide Horn Provides Exceptional Output & Accurate High Frequency Reproduction
    • 90 Degree Conical Dispersion (2kHz Octave Band)

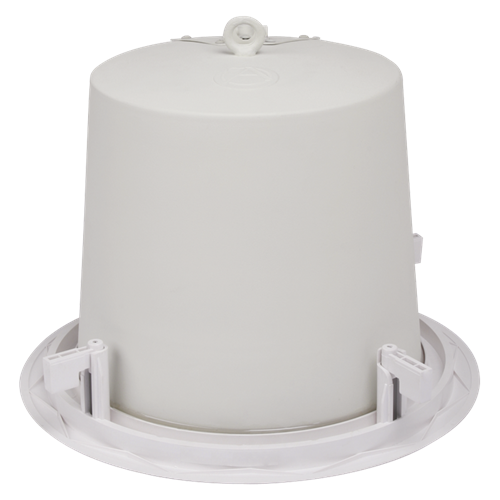

    • Extended Low Frequency Response from the Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure (937 Cubic Inches)
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments (1.9W to 60W @ 70.7V Plus 8 ohm Setting)
    • Includes C-ring/V-rail Tile Bridge Mounting Hardware
    • Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 92dB Average
    Power Taps 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω
    Frequency Response 60Hz - 15kHz
    Dispersion 90°
    Diameter 15 3/4" (40.005 cm)
    Certified to Safety Listing UL 1480

    SUPPORT FILES
    Data Sheet
    ATS002701D FAP8CXT Data Sheet
    CAD Drawing
    BIM Model
    CAD Drawing
    CAD File
    Revit Drawing
    FAP8CXT Revit Drawing


    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
