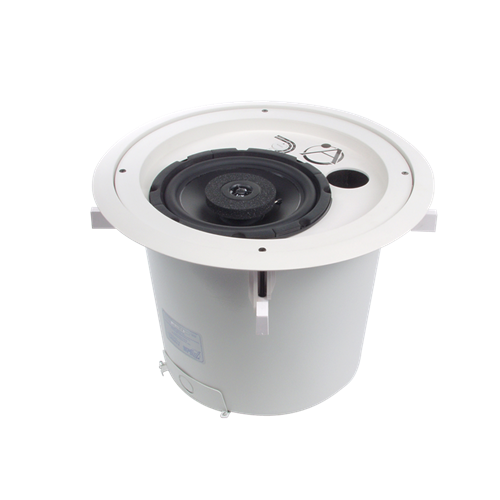

8" Coaxial In-Ceiling Speaker with 60-Watt 70/100V Transformer and Ported Enclosure

FAP82T
Availability: In stock
Your price (USD): $215.99/each
Must purchase in multiples of 2
  • UL Listed
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CE
  • Non-Powered
  • Paintable
  • 8Ω Operation
  • 70V / 100V Operation
    DESCRIPTION

    The AtlasIED FAP82T is a premium performance 70.7/100V tuned & ported 8" coaxial ceiling speaker system perfectly suited for many business music and public address applications -especially applications where high ceilings require speakers with increased efficiency and tighterpattern control.

    The FAP82T's 100 degree dispersion angle (in the 2kHz octave band) is perfect for higher ceiling applications where tighter pattern control is required. Tight pattern control (not exceeding 100 degrees) is important for high ceiling applications. Speakers exhibiting wider dispersion than 100 degrees will exceed 6dB of drop off at the edge of the coverage pattern causing excessive SPL variances. Using more of the same wide coverage speaker in a high ceiling application to compensate only worsens the situation as comb filtering from multi-path arrivals will result.

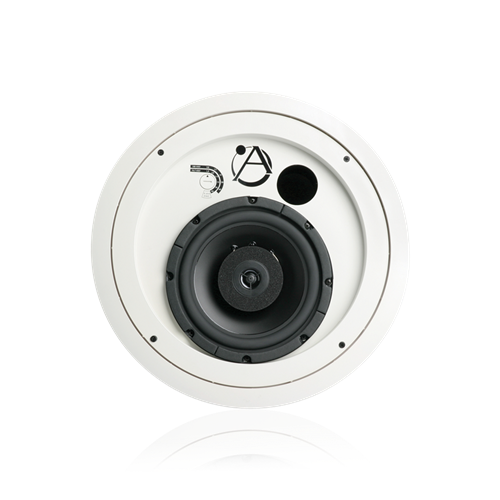

    High quality construction 38mm voice coil, 8" coaxial cone type driver includes polypropylene cone with a butyl rubber surround. The 19mm coaxially mounted tweeter is constructed of PEI. sensitivity of 90dB average means less power may be required to achieve the desired SPL. This speaker is factory assembled to an optimally tuned & ported deep drawn enclosure and includes a specially designed 60 watt low saturation 70.7V/100V transformer. A convenient front mounted selector switch allows tap selection without the need to remove the speaker from the ceiling. This tap selector switch also includes a transformer bypass setting for instances where the 8 ohm FAP82T driver is to be direct coupled with a low impedance amplifier.


    FEATURES
    • "Press -Fit" Grille to Better Blend into Contemporary Architecture
    • 4 Pole Detachable "Phoenix" Style Connector Allows Easy Pre-Wiring and is Convenient for Daisy Chaining Additional Speakers
    • 60 Watt Enhanced Quality 70.7V/100V Internal Transformer Minimizes Insertion Loss and Maintains Low Frequency Response
    • Extended Low Frequency Response from the Optimally Tuned and Ported Deep Drawn Galvanized Steel Enclosure (937 Cubic Inches)
    • Front Mounted Tap Selector Switch for Easy System Tuning Adjustments (1.9W to 60W @ 70.7V Plus 8 ohm Setting)
    • Includes C-ring/V-rail Tile Bridge Mounting Hardware

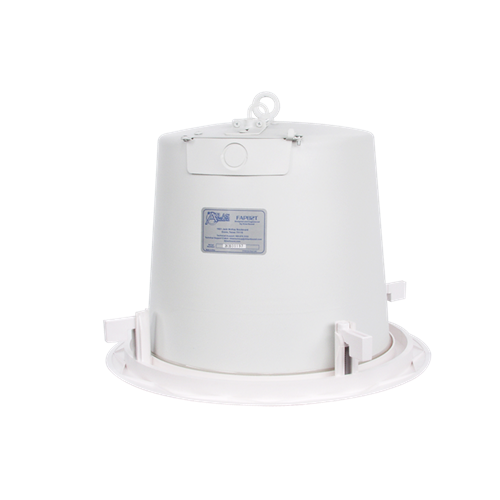

    • May be Pendulum Mounted via Top Mounted Eyebolt (Included). Enclosure is Also Finished in White for Optimum Aesthetics when Hung in Open Ceiling Applications
    • Unique "Trap Door" Input Section Allows for Through Conduit Runs with Rigid or Flex Conduit

    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 90dB Average
    Power Taps 1.9, 3.8, 7.5, 15, 30, 60 Watts & 8Ω
    Frequency Response 55Hz - 20kHz (+/-5dB)
    Dispersion 100°
    Depth 12 3/4" (32.385 cm)
    Shipping Weight 22.50 lbs (10.21 kgs)
    Certified to Safety Listing UL 1480

    SUPPORT FILES
    EASE File

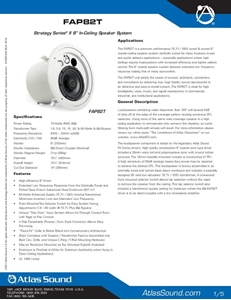

    Data Sheet
    ATS001619E FAP82T Data Sheet

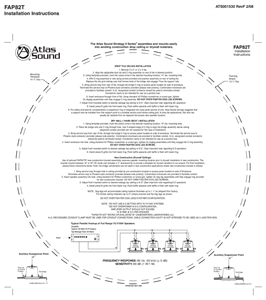

    Installation Sheet
