High Power (550 CFM) Top-Mounting Fan Panel 30 inch Deep Rack

EFT-30
  • TAA
  • BAA
    Powerful cooling assemblies are top-mounting fan panels which provide quiet and effective dissipation of heat, for equipment mounted in 30" deep FMA / 700 Series cabinets.

    Space-efficient units require no vertical panel space and deliver 550 cfm with a 10" diameter tubeaxial propeller fan. Operates at 115VAC, 60 Hz and includes a continuous-duty, shadedpole type motor, sealed ball bearings, and chrome plated finger guards.

    Include an automatic reset thermal protector and six-foot line cord with molded plug mounted to a 16-gauge CRS panel finished in standard black.
    FEATURES
    For 30" Deep Cabinets
    High Power Tubeaxial Fan Delivers 550 CFM
    Quality Components Assure Dependable and Effective Dissipation of Heat
    Top Mounting Fan Assembly Provides Quiet and Space Efficient Cooling for 19" Wide Cabinets
    SPECIFICATIONS
    CFM 550
    Number of Fans 1
    SPL @ 3' 55dB
    Height 3 1/2" (8.89 cm)
    Width 19" (48.26 cm)
    Depth 24 1/2" (62.23 cm)
    Shipping Weight 13.00 lbs (5.90 kgs)
    SUPPORT FILES
    Data Sheet

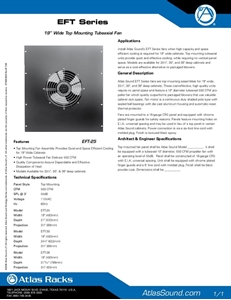

    EFT Series Data Sheet (1 page)
    CAD Drawing
    EFT-30
