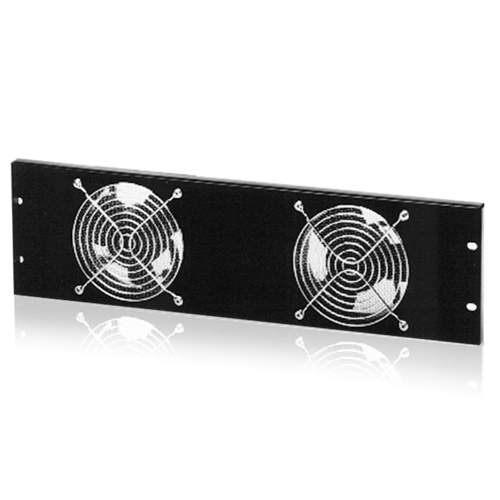

19 inch Dual Fan Panel Recessed Mount

EFP3-2
  • TAA
  • BAA
    Recessed and flush fan panel assemblies dissipate equipment-generated heat quickly from 19" cabinets. Front/rear and top loading assemblies are available in single and dual fan models with 115 CFM fan speed for either flush or recessed mounting.  Models are complete with fan(s) protected by nickel chrome plated wire grille backed with a steel wire mesh screen assembled to a 16-gauge CRS panel. Panels mount easily to all E.I.A. standard mounting rails and are stocked in standard black finish. Fans are factory-mounted for exhaust cooling and may be rotated easily, in the field, for intake cooling. A 6 ft. line cord is included.
    Features
    Dual Fans with 115 CFM Rating (Each) Provide for Rapid and Efficient Heat Dissipation
    Recessed Style
    Suitable for Exhaust Cooling or Intake Circulation
    Tech Specs
    Rack Units 3
    Number of Fans 2
    Height 5 1/4" (13.335 cm)
    Width 19" (48.26 cm)
    Depth 2 1/8" (5.3975 cm)
    CFM 230
    Current Draw 30 Watts
    Shipping Weight 8.00 lbs (3.63 kgs)
    Support Files

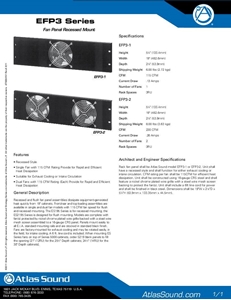

    Data Sheet Data Sheet (1 page) View | Download
    CAD Drawing EFP3-2 Download
