30A AC Power Module Spike Suppressor

Availability: In stock
Your Price:
  • UL Listed
  • CUL
  • ETL
  • CETL

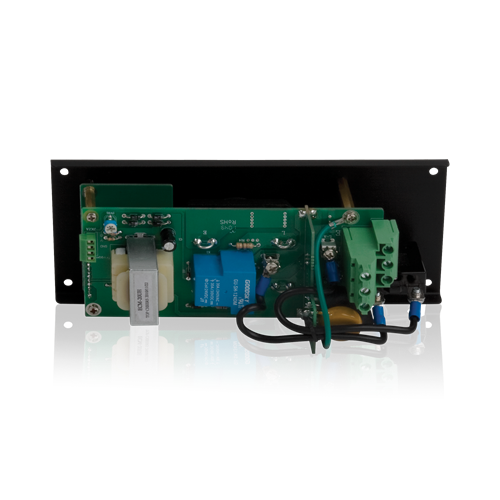

    The Atlas Power ECM-30 is an Electrical Control Module (ECM) 30A Power Conditioner and AC Spike Suppressor that is designed to be used as a stand-alone unit or in conjunction with an ECS-6RM Controller up to 1000ft away. The ECM-30 features electrical supression circuitry that can suppress up to 6kV or 3000A voltage spikes. Additionally the unit features Extreme Voltage Shutdown (EVS) when used in conjunction with an ECS-6RM controller. This enables the unit to be shut off during High or Low AC line conditions in order to protect electronics plugged into the unit.

    Unit must be used in conjunction with either the ECM-RACEWY1, EMC-RACEWY3, or ECM-RACEWY6 mechanical, rack mountable housing.

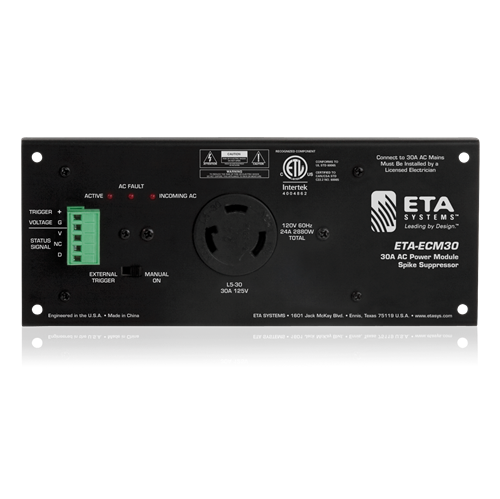

    • Single 30A Outlet
    • Manual/Auto On/Off Switch
    • Incoming AC Present LED
    • Active and AC Fault LEDs
    • Clamping Spike & Surge Suppression EVS Circuitry

    Current Rating 30 Amps
    Power Requirement 120V 60Hz
    Certified to Safety Listing ETL (UL 1449)
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6,000V
    Power Consumption .5 Watts
    Height 3.0" (76.2mm)
    Length 8.5" (215.9mm)
    Depth 3.5" (88.9mm)
    Weight 1.25 lbs. (.68 kg)
    Warranty Period 12 months from date of purchase

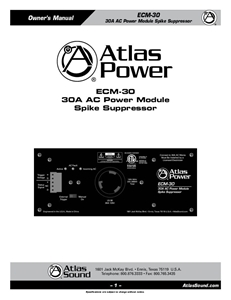

    ECM-30 Owners Manual (12 pages) ECM-30 Owners Manual (12 pages)

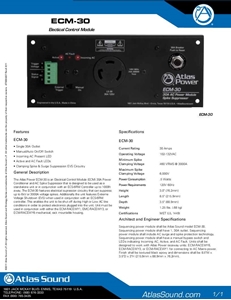

    ECM-30 Datasheet (1 page) ECM-30 Datasheet (1 page)
