Blind Mount 8 inch Enclosure 7 inch Deep

Availability: In stock
Your Price:
  • BAA
  • TAA

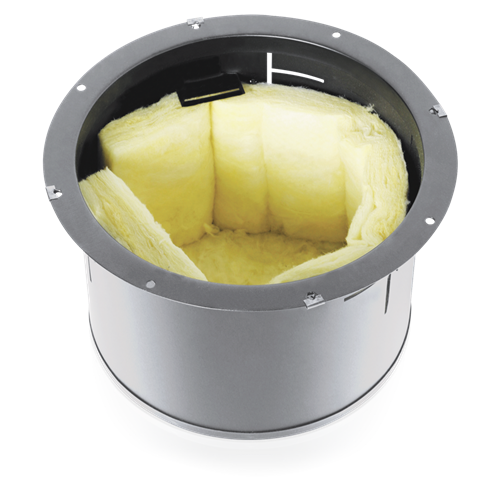

    AtlasIED 8" Blind-Mount enclosure systems ( U.S. Patent # 4,673,149 ) provide an easy and cost-effective alternative for secure speaker installation in retrofit ceiling applications. All necessary hardware is provided including a unique support system with mounting ears that telescope out from inside the enclosure and adjust vertically to accommodate ceilings with a thickness of 1/2" (13mm) to 1 3/8" (35mm).

    Units feature CRS construction and include torsion-spring receptacles for quick mounting of torsion-spring grilles. (J-Nuts are included on the return of the enclosure to accommodate surface-mounting grilles.)

    To allow cable access, enclosure backplates are manufactured with three 1/2" (13mm) conduit knockouts. Enclosures are also equipped with sound damping material to minimize metallic resonance.

    Model BMT95-8-7 is a 7" (178mm) deep version which includes high-density fiberglass fill finished in a textured black epoxy.

    • Extra-Depth Model Offers Increased Volume and Extended Bass Response
    • Mounting Ears Adjust Vertically to Accommodate Varying Ceiling Thicknesses
    • Quick Mounting of Torsion-Spring and Surface-Mounting Loudspeaker Grilles
    • Support System Enables Enclosure Installation in Retrofit Ceiling Applications

    Depth 7" (17.78 cm)
    Diameter 10 1/8" (25.72 cm)
    Shipping Weight 5.40 lbs (2.45 kgs)
    Mounts Baffle (T)51-8, (T)60-8(W), (T)61-8W, (T)62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, T610-8W, T710-8, T720-8A, M222(W),TM222W, P900, 60-R
    Warranty Period 60 months from date of purchase

    Enclosures for Blind Ceilings Installation Instructions (1 page) Enclosures for Blind Ceilings Installation Instructions (1 page)
    BT95-Series Datasheet (2 pages) BT95-Series Datasheet (2 pages)
