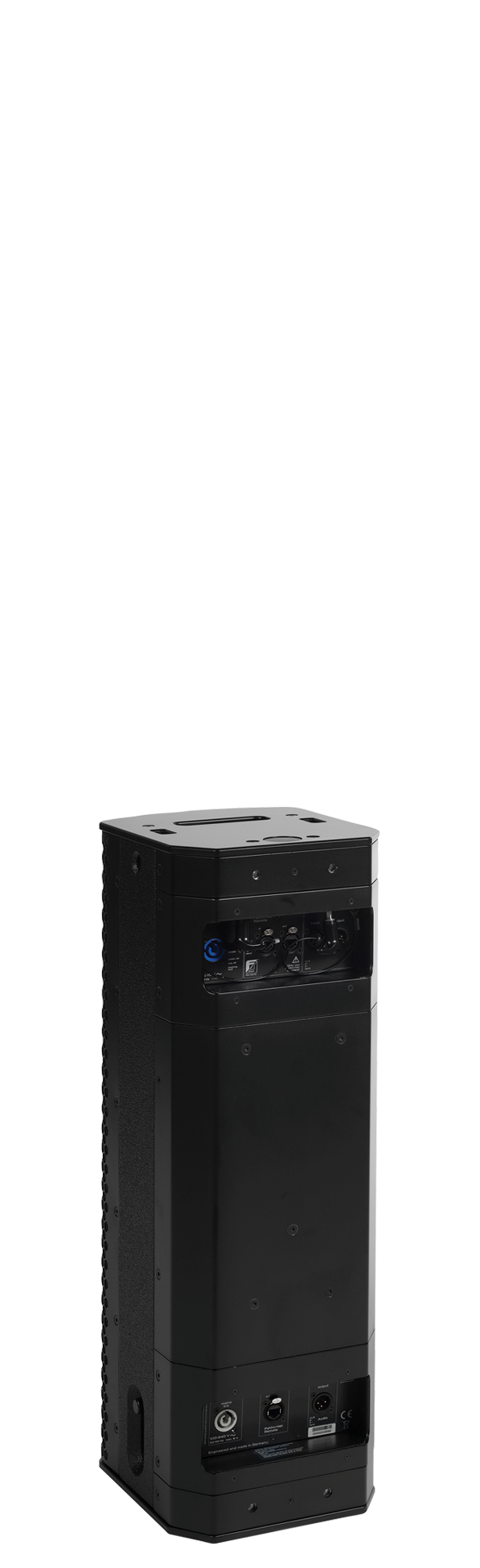

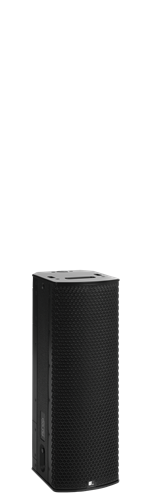

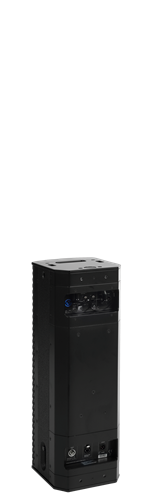

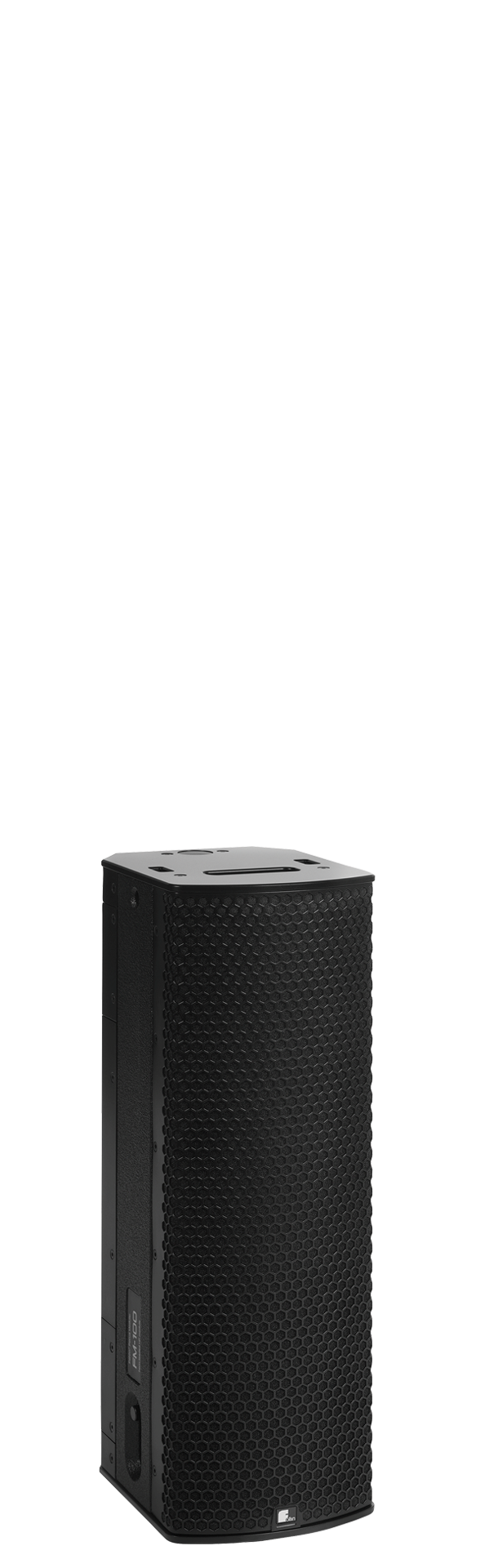

Fohhn Line Source with 8 1" Drivers with 8 Channel Amplification and Integrated DSP - Black

ALS-FMI100B

    High performance, high frequency module with beam steering technology, equipped with 8 neodymium 1” compression drivers with Waveguide / horn system.

    8 state-of-the-art Class D amplifiers are also integrated, as well as a specially developed 8-channel DSP processor for beam steering capability. The loudspeaker can reach a maximum SPL of 142dB / 1 metre. Its vertical beam width (0°-90°) and sound inclination angle (-40°/+40°) can be adjusted in real time, in 0.1° increments, using Fohhn Audio Soft control software. This ultra-fine degree of adjustment enables the speaker beam to be targeted with extreme precision towards the required audience area.

    The speaker output can be split into two separate beams (Fohhn Two Beam Technology), enabling simultaneous coverage of different areas such as stalls and balcony. A further feature is Fohhn’s Side Lobe Free technology. This algorithm is designed to suppress the unwanted side lobes that inevitably occur with line arrays, resulting in greatly improved speech intelligibility.

    The elegant speaker housing is constructed from premium quality multi-ply birch wood. Loudspeaker drivers and electronics are protected by a steel front grille, backed by acoustic foam, specially designed to give maximum sound transparency.

    Two or more Focus Modular units can be securely combined in seconds using Fohhn’s own Quick-Lock system. Flying mechanics can also be secured using Quick-Lock. Optional brackets for ceiling and wall mounting, and also for flown applications, are separately available. CAAD simulation data for EASE is available on request.

    The ALS-FMI100 fixed installation model is also equipped with important features that enable its integration into emergency evacuation systems (in accordance with EN60849 requirements). The connector panel has a protective cover with slots to accommodate cabling.

    Features
    High performance low-mid module (SPL max: 142dB)
    Powerful, musical sound
    Real-time beam steering via intuitive software
    Ultra-fine adjustment of loudspeaker beams in 0.1° increments
    Vertical beam width 0°-90°
    Vertical sound inclination angle -40° to +40°
    Side Lobe Free Technology – suppresses side lobes
    Two Beam Technology – two separate beams per module
    Suitable for mobile and fixed installation applications
    Excellent speech intelligibility, even in reverberant acoustics
    Tech Specs
    Amplifier Power 120-Watts x 8
    Frequency Response 1kHz - 17kHz
    Signal to Noise Ratio >105 dB/A
    Vertical Dispersion 0° - 90°
    Horizontal Dispersion 90°
    Power Consumption 5W Standby, 400W Max
    Temperature Range 0° - 40°C
    Height 27.56" (700mm)
    Depth 10.79" (274mm)
    Width 8.82" (224mm)
    Weight Approx~52.8 lbs. (24kg)
    Support Files
    Owners Manual FOHHN AudioSoft Software Manual (51 pages) View | Download
    Software/Firmware FOHHN AudioSoft Software 4.0.1 Download
    Installation Sheet FOHHN Net Configuration (1 page) View | Download
    Data Sheet FOHHN_Modular_Focus_Data_Sheet_and_Brochure (27 pages) View | Download
