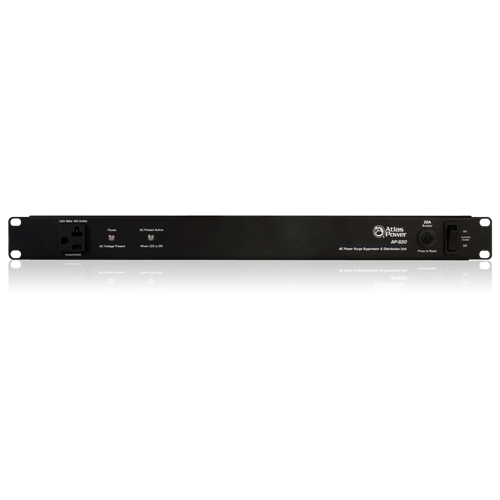

20A Power Conditioner and Distribution Unit

AP-S20
Availability: In stock
Your Price:
$238.99
  • UL Listed
    DESCRIPTION

    The AP-S20 features noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.

    Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S20's circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds.


    Features
    • 9 Total Outlets
    • 1 Front Panel Outlet, Unswitched
    • Radio Frequency and Electromagnetic Interference Filtering
    • Spike Suppression Up to 6000V

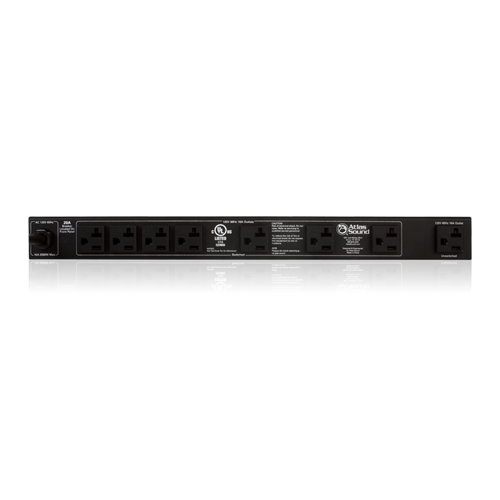

    • 7 Rear Panel Switched Outlets
    • Circuit Breaker Protection 20A
    • 1 Rear Panel Unswitched Outlet

    SPECIFICATIONS
    Current Rating 20 Amps
    Certified to Safety Listing Listed to UL-60950
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6000V
    AC Mains Power Cord 9' (3m)
    Height 1.75" (44.5mm)
    Width 19" (482.6mm)
    Depth 3.75" (95.5mm)
    Weight 5 lbs. (2.27 kg)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES

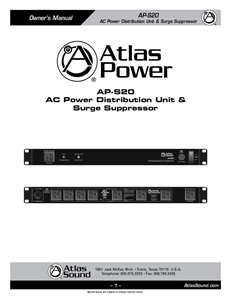

    AP-S20 Owners Manual (8 pages) AP-S20 Owners Manual (8 pages)

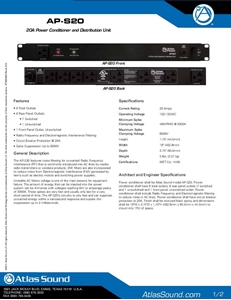

    AP-S20 Datasheet (1 page) AP-S20 Datasheet (1 page)
