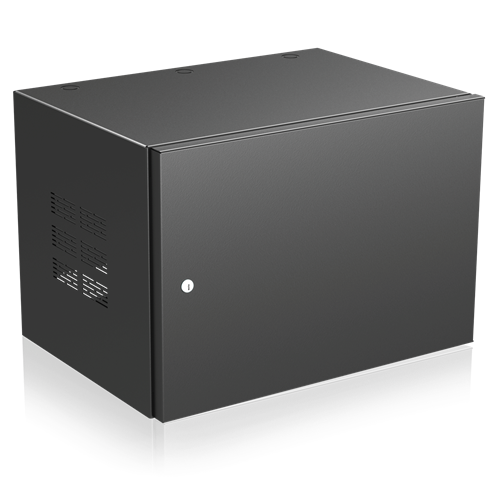

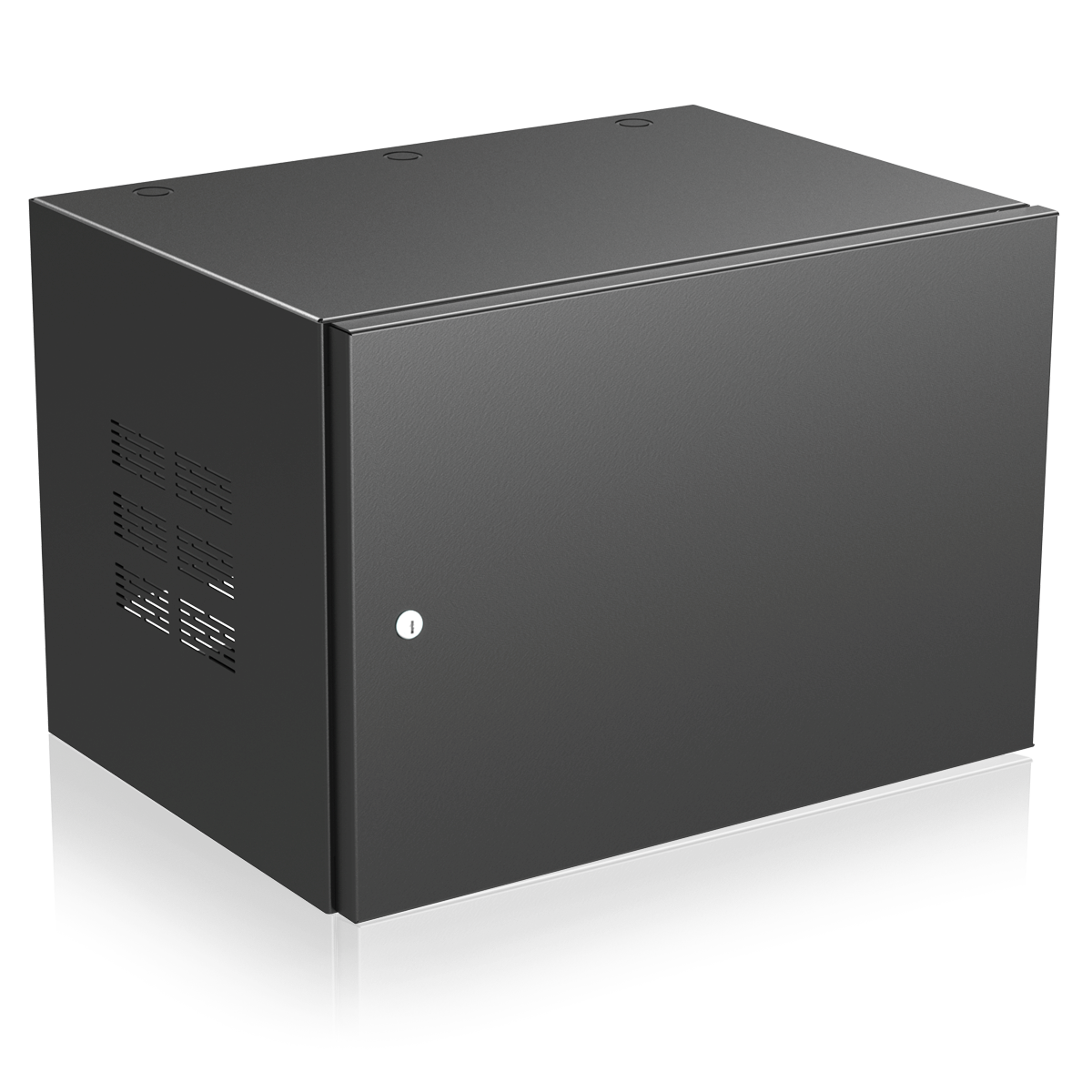

Welded & Assembled Desk Top Cabinet - 18 RU (Shown with OPTIONAL front door)

418-15
  • TAA
  • BAA


    This welded assembly provides desk-top access to (19") control and monitor equipment.

    Model 418-15 is 16-gauge CRS and includes one pair of mounting rails, tapped 10-32, hardware and wiring access below rear door or panel.

    Model includes locking rear door with spring-loaded hinge, side vents and optional front door (SFD418) with self-tapping screws.

    Inside (usable) dimensions are 17 3/4" W x 14 1/8" D.

    FEATURES
    11-Gauge CRS Tapped Mounting Rails
    16-Gauge CRS Cabinet
    5/8" - 5/8" - 1/2" EIA Standard Panel Mount Spacing
    5/8" Offset Rails for Panel Mount
    Completely Assembled and All-Welded Construction
    Internal Louvers on Each Side
    Keyed Cylinder Lock on Rear Door
    Optional Front Surface Door Available with Right or Left-Hand Hinging Capability
    Spring-Loaded Hinge for Easy Removal of Rear Door
    SPECIFICATIONS
    Rack Units 18
    Height 34 3/4" (88.27 cm)
    Width 22 5/16" (56.68 cm)
    Depth 15 3/8" (39.05 cm)
    Shipping Weight 63.00 lbs (28.58 kgs)
    SUPPORT FILES
    CAD Drawing
    418-15 CAD Drawing
    Data Sheet

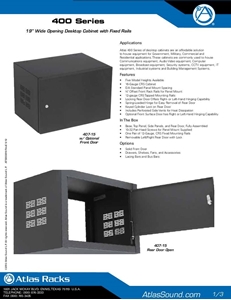

    400 Series Data Sheets (3 pages)
