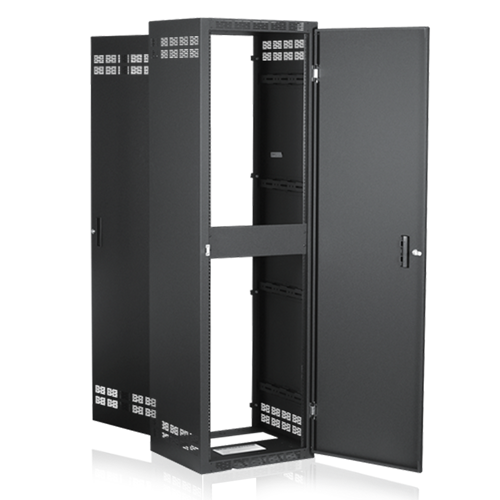

Welded Rack 25.5 inch Deep, 40RU **Shown with OPTIONAL Front Door**

240-25
  • UL Listed
  • TAA
  • BAA

    The economical AtlasIED 240-25 cabinet is 22 5/16" wide, 25 1/2" deep, and contains 40RU vertical panel spaces. The 240-25 cabinet includes one pair of 11-gauge CRS adjustable mounting rails.

    The series is constructed of 16-gauge CRS and include base, top panel, side panels, mounting rails, a removable rear door with cylinder lock and flush door pull handle.

    Offers several installer-friendly advantages, including an expanded 6RU opening in the cabinet top and bottom which can be left open for wire access and/or ventilation, or closed using a standard vent or solid panels.

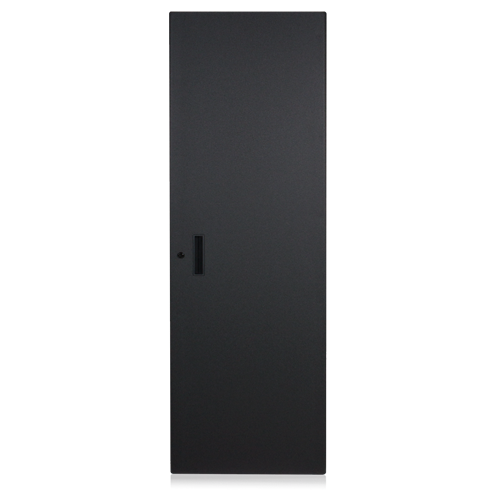

    Rear doors (included with all models) are hung with quick-release spring hinges which allow them to be rotated 180° for right or left-hand opening. If a front door is ordered, it will be keyed differently than the rear door for security.

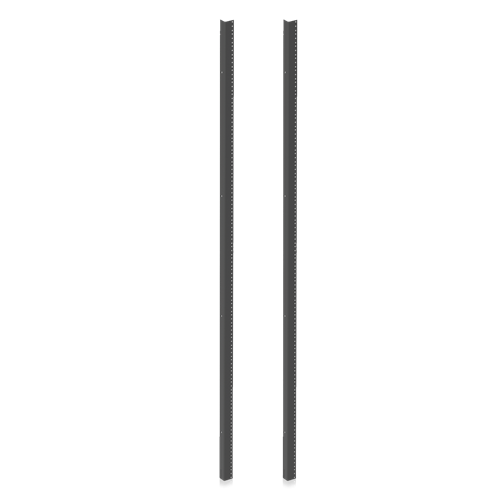

    Rack rails are precision tapped 10-32 and recessed 11/16" (17.5mm). These plated rails include convenient RU indicator hash marks to aid in equipment alignment. Rails are standard E.I.A. 5/8"-5/8"-1/2" spacing.

    Conduit arrays are located on the top and bottom surface panels, as well as the top and bottom back flanges. Flange arrays consist of five knockouts, three 1" (25mm) standard, and two 1/2" (13mm) x 3/4" (19mm) concentric. Surface arrays are comprised of 4 knockouts, two, 1" (25mm) standard knockouts and two 1/2" (13mm) x 3/4" (19mm) concentric.

    Stamped, perforated vents are located on all sides as well as on the rear door to allow for maximum air convection.
    Cabinet surfaces are phosphate pre-treated for proper paint adhesion of the textured black epoxy finish.

    FEATURES
    21RU to 44RU Heights, 25 1/2" Depth
    Adjustable Rack Rails
    The Best Value in the Industry
    SPECIFICATIONS
    Rack Units 40
    Height 74 1/4" (188.595 cm)
    Width 22 5/16" (56.67 cm)
    Depth 25 1/2" (64.77 cm)
    Usable Depth 24" (60.96 cm)
    Safety Listed 1678
    SUPPORT FILES
    CAD Drawing
    240-25 CAD Drawing
    A & E Specifications
    All Racks AE Specs Only
    Data Sheet

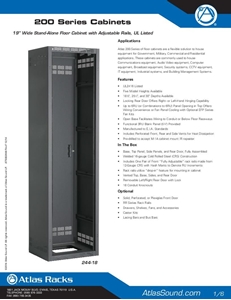

    200 Series Data Sheet (6 pages)
