IP Addressable Dual Zone Interface with Line Level, 8Ω, 25V, 70.7V Output

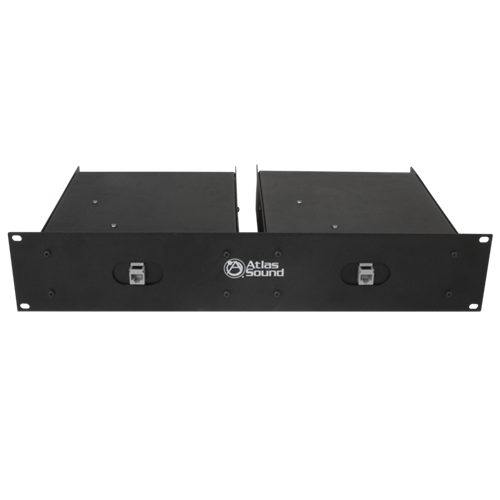

ZC2PRO-CK
    DESCRIPTION
    The ZC2PRO-CK Zone Controller Pro is a 2 Zone analog gateway for AtlasIED IP paging systems. This model is compatible with AtlasIED's ControlKom©2.0 and Syn-Apps' SA Announce software.

    The ZC2PRO-CK provides a line level output to connect to AtlasIED commercial amplifiers and an 8Ω, 25V, 70.7V amplified output to drive small analog speaker zones. It also includes 2 GPI Inputs, 2 GPI Outputs and Microphone input for talk back applications. Power can be supplied via plug-in transformer (IPS-PSU-CK) or by 802.3af compliant PoE network switches.

    All control features of the ZC2PRO-CK are software controlled.

    FEATURES
    • Use with ControlKom® 2.0 or Syn-Apps SA Announce software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
    • 2 GPI Contact Closure Inputs, and 2 GPI Relay Outputs

    SPECIFICATIONS
    Rack Units 2RU (If ZCM-V2FP is Used)
    Power Rating 9 Watts RMS into an 8Ω Load w/ 12VDC Input
    Inputs RJ-45 Female on PCB
    Outputs 600Ω, 8Ω, 25V, or 70.7V
    Power Source IEEE 802.3af Compliant POE Network Switches / Local 12VDC - 18VDC PSU
    Network Control Multicast Enabled Networks
    Sample Rate 50V @ 500mA Max
    Input Minimum 1mA to Run on 50V Max

    SUPPORT FILES
    Installation Sheet

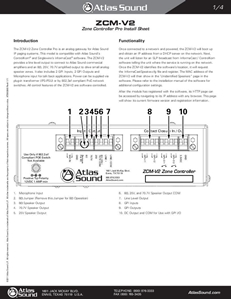

    ATS003980_ZCM-V2_Install_Sheet_PRINT
