IP Addressable Dual Zone Interface with Balanced Line Level Outputs for Use with ControlKom™ 2.0

ZC2-CK
  • ETL
  • CETL
    DESCRIPTION

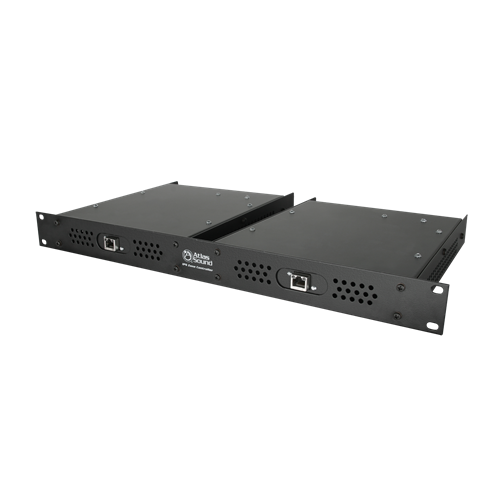

    Model ZC2-CK from AtlasIED consists of a factory assembled PCB control board housed in a rugged and compact 1RU chassis. The unit provides the same addressable end point functionality as an IP speaker or IP phone with the convenience of line level audio output. This line level output is perfect for use with Atlas AA, PA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V Atlas speaker or paging horn assemblies.

    The unit receives 12VDC power provided by IEEE 802.3 AF compliant POE switches (local 12VDC – 18VDC PSUs may also be used instead of POE switches). Network interconnection is via a board mounted female RJ-45 connector on the front panel.  Output is balanced line level via a 3 pole terminal block on the rear panel.

    FEATURES
    • Use with ControkKom® 2.0 software to send live, prerecorded or ad hoc messages along with control data to Atlas Sound IP Speaker and zone controller end points over new or existing multicast enabled local area networks.
    • Modular 1RU Design Allows for Easy Rack Mounting and Cable Access
    • Balanced Line Output to Drive Atlas CP, PA or AA Series Amplifiers

    SPECIFICATIONS
    Height 1 3/4" (4.445 cm)
    Depth 8 3/16" (20.828 cm)
