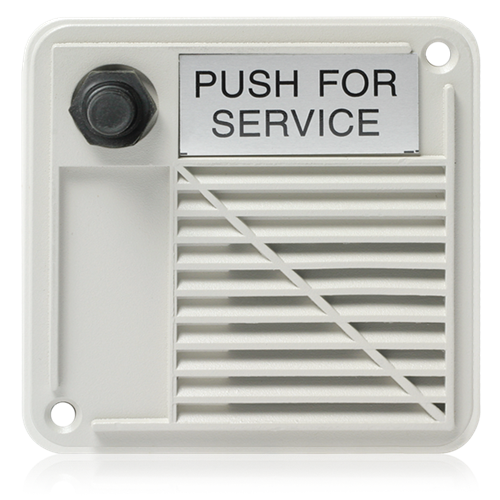

Outdoor Surface Mount Intercom Stations with Compression Driver and Call Switch 2W 25V

WPVT-6SN
  • TAA
  • BAA
  • IP44

    WPVT-FN/WPVT-SN Series are flush- and surface-mounting, weather-resistant, electroacoustic signaling devices respectively. They are ruggedly constructed to withstand moisture, corrosion, dust, vibration, and temperature extremes from -30° to 150° F. Stations include high-intelligibility, environment-resistant compression driver, choice of semirecessed enclosure or flush face plate, a variety of mounting accessories, and a weatherresistant call button for protected call-in signalling capability. Stations are available in 15 or 2 watt versions with optional 25 volt transformer. The 8 ohm compression driver is the patented VT Series model with water-sealed, die-cast zinc construction and integral, exponential sound projector to provide clear audibility. Call switch is a momentary-action, heavy-duty push button with a contact rating of 3 amps. The call button has a SPDT-type switch which is protected by a weather-resistant rubber boot to provide durable and safe operation in outdoor and high humidity environments.

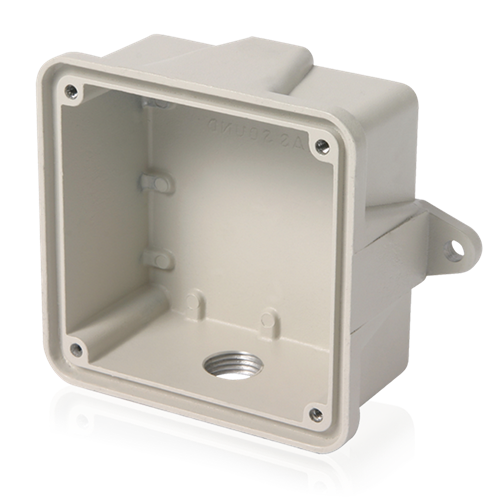

    WPVT-SN Series are compact assemblies size 4 1/4" SQ x 3 1/8" D (108 x 79mm) which are designed for semi-recessed installation. WPVT-FN Series are attractively designed face plates size 6" SQ x 3 3/16" D (152 x 81mm) for flush installations. Both styles will accept a variety of mounting accessories to meet varying installation requirements (see back page). Enclosures and face plate are die-cast construction finished in neutral grey epoxy.

    FEATURES
    Available in Flush, Semi-Recessed, and Surface-Mounting Configurations
    Environment-Resistant Paging and Intercom Stations for Outdoor Installation Include Weatherproof Call/Signal Origination Switch
    Loudspeaker Provides Clear and Consistent Voice and Signal Transmission
    Power Handling Selection of 15 and 2 Watt Models Includes Optional 25 Volt Transformer to Meet Various Functional and Transmission Requirements
    Proven Performance Reliability of the Patented VT Series Environment-Resistant Compression Driver
    Semi-Recessed
    SPECIFICATIONS
    Frequency Response 600Hz - 55kHz
    Sensitivity 93dBA
    Power Taps 2 and 1
    Dispersion > 190° (- 6dB pt., 1 and 2 kHz octave bands)
    Transformer 25V
    Height 4 1/4" (10.795 cm)
    Depth 3 1/8" (7.938 cm)
    Shipping Weight 3.50 lbs (1.59 kgs)
    SUPPORT FILES

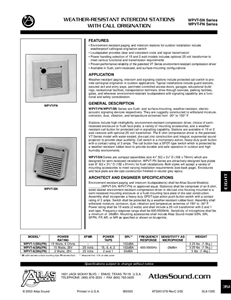

    SL8.1355.PDF (2 pages)

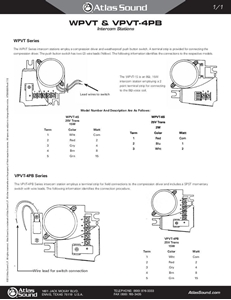

    Installation Sheet
    ATS004390_WPVT,_VPVT-4PB_Install_Sheet-1 (1 page)
