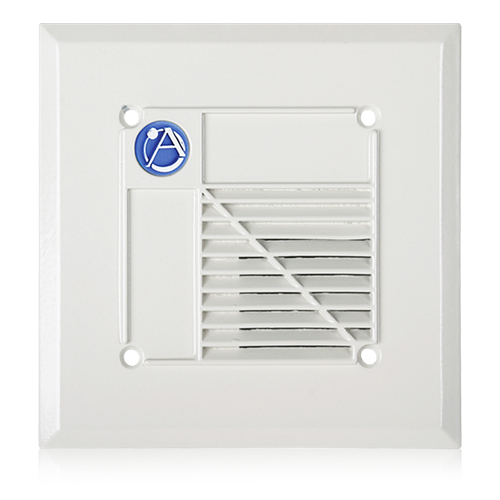

Voice/Tone Recessed Compression Driver Speaker with 15-Watt 70V Transformer - Gray

VTF-157UCN
Availability: Call Us for Product Availability
Your Price:
$180.99
  • IP56
    DESCRIPTION

    Through proven performance, patented VT/VTF Series have earned worldwide acclaim for service reliability. These cost-effective units offer compact size, functional flexibility, optimum intelligibility, effective sound distribution, and high-level output. All models contain a highefficiency compression driver with maximum acoustic conversion efficiency. (A quality which reduces number of units needed to attain specified sound pressure levels and provides substantial savings in amplification-power requirements and labor costs.) Die-cast, water-sealed construction withstands vandalism, vermin, moisture, corrosion, and vibration during indoor or outdoor use. Selection includes a basic 8-ohm version and 70.7 or 25-volt transformer models with DC blocking capacitor (C) where noted. All models terminate via barrier strips. VT Series models are surface-mount units; VTF Series are flush-mount units for recessed installation. VT Series mounts standard 4" E.O. Boxes; VTF Series mount 4" or 4 11/16" SQ backboxes and require model AR or MR adapter rings respectively (order separately) Optional mounting accessories are offered including: indoor and outdoor enclosures, a bi-directional housing, adapter plates and rings. Suffix model with color: Red (R) or Neutral Gray (N). Ex: VT-157UCS.


    Features
    • 70.7 V
    • Communications, Intercom, Electronic Alarm, and Monitoring Systems
    • High Efficiency Compression Driver for Optimum Audio Intelligibility
    • Metal Die-Cast Construction with Integral Exponential Horn
    • Operates Within a Temperature Range of -30° F to 150° F
    • Patented Voice/Tone Loudspeaker for Custom Application in High Efficiency Industrial
    • Selection of five Models; 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V Transformers
    • UL-Recognized Speaker Component
    • Water/Moisture, Corrosion, Dust, Vibration, and Vermin-Resistant

    SPECIFICATIONS
    Frequency Response 600Hz - 5.5kHz
    Sensitivity 96.9dB (1W/1m)
    Power Taps 15, 8, 4, 2
    Dispersion > 190° (- 6dB pt., 1 and 2 kHz octave bands)
    Transformer 70.7 V
    Height 6" (15.24 cm)
    Depth 3 3/16" (8.09752 cm)
    Shipping Weight 3.10 lbs (1.41 kgs)
    Safety Listed 1480
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    VT157 Series EASE DATA VT157 Series EASE DATA
    UL Listed Voice/Tone Emergency Loudspeaker Datasheet (4 pages) UL Listed Voice/Tone Emergency Loudspeaker Datasheet (4 pages)
    VT-VTF Series Install Sheet (1 page) VT-VTF Series Install Sheet (1 page)
