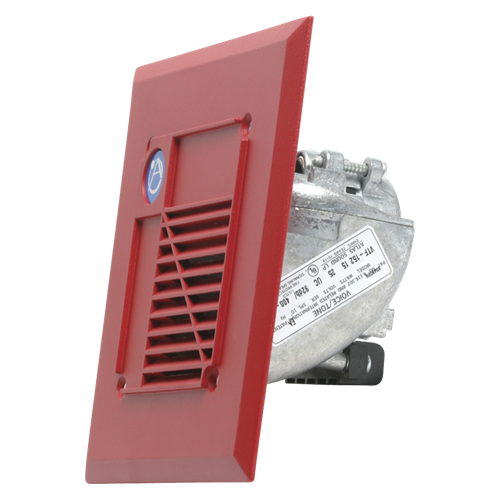

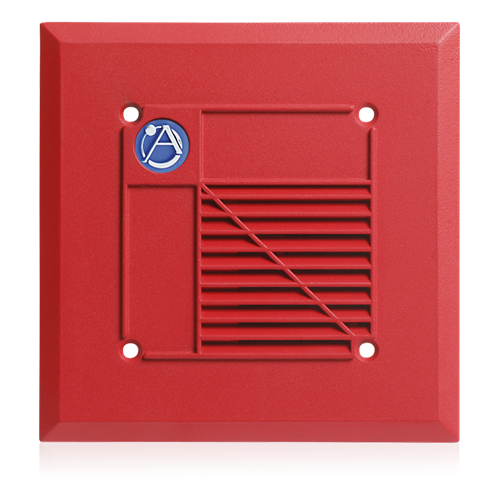

Voice/Tone Recessed Compression Driver Loudspeaker with 15-Watt 25V Transformer - Red

VTF-152UCR
  • IP56

    Through proven performance, patented VT/VTF Series have earned worldwide acclaim for service reliability. These cost-effective units offer compact size, functional flexibility, optimum intelligibility, effective sound distribution, and high-level output. All models contain a highefficiency compression driver with maximum acoustic conversion efficiency. (A quality which reduces number of units needed to attain specified sound pressure levels and provides substantial savings in amplification-power requirements and labor costs.) Die-cast, water-sealed construction withstands vandalism, vermin, moisture, corrosion, and vibration during indoor or outdoor use. Selection includes a basic 8-ohm version and 70.7 or 25-volt transformer models with DC blocking capacitor (C) where noted. All models terminate via barrier strips. VT Series models are surface-mount units; VTF Series are flush-mount units for recessed installation. VT Series mounts standard 4" E.O. Boxes; VTF Series mount 4" or 4 11/16" SQ backboxes and require model AR or MR adapter rings respectively (order separately) Optional mounting accessories are offered including: indoor and outdoor enclosures, a bi-directional housing, adapter plates and rings. Suffix model with color: Red (R) or Neutral Gray (N). Ex: VT-157UCS.

    Features
    25 V
    Communications, Intercom, Electronic Alarm, and Monitoring Systems
    High Efficiency Compression Driver for Optimum Audio Intelligibility
    Metal Die-Cast Construction with Integral Exponential Horn
    Operates Within a Temperature Range of -30° F to 150° F
    Patented Voice/Tone Loudspeaker for Custom Application in High Efficiency Industrial
    Selection of five Models; 2 or 15 Watts, 4 or 8 Ohms, 25V or 70.7V Transformers
    UL-Recognized Speaker Component
    Water/Moisture, Corrosion, Dust, Vibration, and Vermin-Resistant
    Tech Specs
    Frequency Response 600Hz - 55kHz
    Sensitivity 96.9dB (1W/1m)
    Power Taps 15, 8, 4, 2
    Dispersion > 190° (- 6dB pt., 1 and 2 kHz octave bands)
    Transformer 25 V
    Height 6" (15.24 cm)
    Depth 3 3/16" (8.09752 cm)
    Shipping Weight 3.60 lbs (1.63 kgs)
    Safety Listed 1480
    Support Files

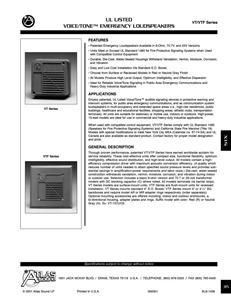

    SL6.1439.PDF View | Download

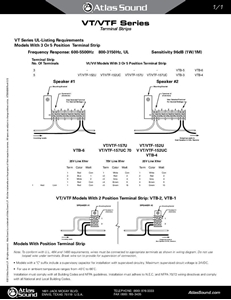

    Installation Sheet ATS004388 VT-VTF Series Install Sheet (1 page) View | Download
