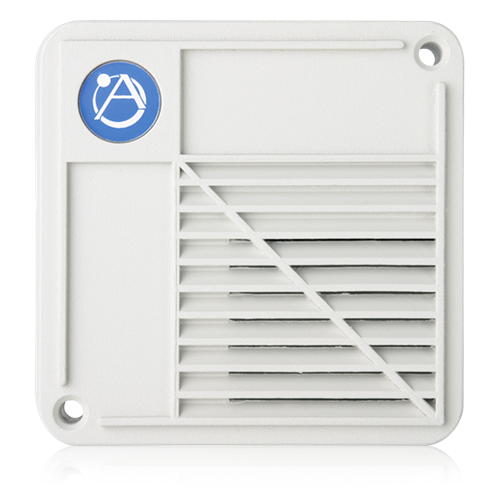

Voice/Tone Surface Mount Compression Driver Loudspeaker with 15-Watt 25V Transformer - Gray

VT-152UCN
  • UL Listed

    Through proven performance, patented VT Series fire protective signaling loudspeakers have earned worldwide acclaim for service reliability. Inside every VT loudspeaker is a small compression driver capable of high sound pressure levels, and the die-cast, water-sealed construction withstands vandalism, vermin, moisture, corrosion, and vibration during indoor or outdoor use.
    An internal DC blocking capacitor enables the VT to work on supervised loudspeaker lines, and loudspeaker wiring terminates on a barrier strip. Optional mounting accessories are offered including: indoor and outdoor enclosures, a bi-directional housing, adapter plates and rings. Neutral Gray Finish

    Features
    Choose from Surface or Recessed Models in Red or Neutral Gray Finish
    Durable, Die-Cast, Water-Sealed Housings Withstand Vandalism, Vermin, Moisture, Corrosion, and Vibration
    Ideal for Reliable Voice/Tone Signaling in Public Area Emergency Communications and Heavy-Duty Industrial Applications
    Patented Emergency Loudspeakers Available in 25V or 70V versions
    Surface Model in Neutral Gray Finish
    Units Meet or Exceed UL Standard 1480 for Fire Protective Signaling Systems when Used with Compatible Control Equipment
    UL Certified, Safety Listed to UL1480
    VT Series Loudspeakers Produce High Level Output, Optimum Intelligibility, and Wide Dispersion
    Tech Specs
    Frequency Response 600Hz - 55kHz
    Sensitivity 96.9dB (1W/1m)
    Power Taps 15, 8, 4, 2
    Dispersion > 190° (- 6dB pt., 1 and 2 kHz octave bands)
    Transformer 25 V
    Height 4 1/4" (10.795 cm)
    Depth 3 1/8" (7.9375 cm)
    Shipping Weight 3.60 lbs (1.63 kgs)
    Safety Listed 1480
    Support Files
    SL6.1439.PDF (4 pages) View | Download
    Installation Sheet ATS004388 VT-VTF Series Install Sheet (1 page) View | Download
