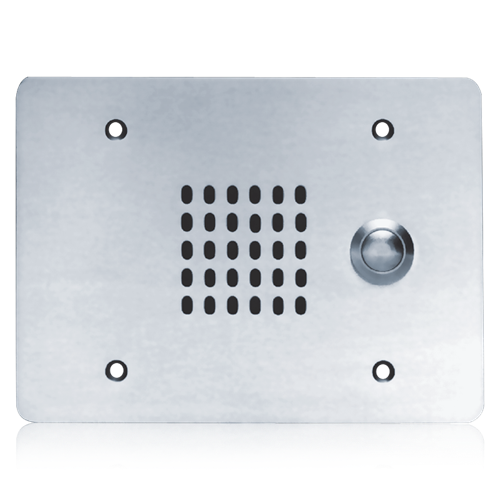

Intercom Stations w Cone Speaker Call Switch 25V 3 Gang

Availability: In stock
Your Price:
  • BAA
  • TAA
  • IP44
  • Vandal Proof

    Stations are equipped with a 2 1/2" (64mm) diameter loudspeaker to deliver clear voice and signal transmission while the phenolic resin impregnated, moisture-proof cloth cone provides durable performance. The VPCS Series includes two die-cast baffles to protect the loudspeaker assembly from vandalism.

    The Series is available with a 25V transformer providing 1/4, 1/2, 1, and 2 watt taps or as a 45Ω configuration. Model numbers indicating "PB" include a vandal-proof push-button call switch for installation where call origination is a required function or a desired adjunct to security. "PB" models feature a heavy-duty, momentary action push-button with a 3A at 120VAC/1.5A at 250VAC contact rating, mounted to an 11-gauge stainless steel face plate.

    The face plate mounts standard 2 &/or 3-gang E.O. boxes with any counter sunk 6-32" mounting screw. Lead wires are 5" (127mm). Switch is single pole, single throw, normally open. Pushbutton assembly is constructed of nickel plated brass and sealed against moisture with a classification of IP65. VPB-1A is a vandal-resistant pushswitch intercom accessory mounted to a single gang size stainless steel plate. Utilize assembly in conjunction with VPCS 2- and 3-gang stations or as a stand alone signaling device when a separate or remotely located call origination button is desired.

    • Shallow Depth of 2 1/8" (54mm) for Mounting in Standard 2 & 3-Gang Back Boxes
    • Transformer Models Include 1/4, 1/2, 1, and 2 Watt Taps at 25V
    • Durable 11-Gauge, Stainless Steel Face Plate
    • Moisture-Resistant 2 1/2" (64mm) Diameter Cone Loudspeaker
    • Offers Smooth Loudspeaker Response with High Output in the Speech Range
    • Two-Piece Die-Cast Baffle System Protects the Loudspeaker Assembly from Vandalism
    • Choice of Basic or Call Switch Equipped Models
    • Unit Design Facilitates Quick and Easy Service Procedures

    Frequency Response 350Hz-4500Hz (±6dB)
    Sensitivity 88dB (Measured @ 1 watt / 1 meter) 92.4dB 2000Hz Octave Band
    Transformer Taps 1/4, 1/2, 1, and 2 Watts
    Transformer 25V
    Height 4 3/4" (121mm)
    Width 6 3/8" (162mm)
    Depth 2 1/8" (54mm)
    Weight 1.72 lbs. (.78kg)
    Warranty Period 60 months from date of purchase

    VPCS Datasheet (4 pages) VPCS Datasheet (4 pages)
