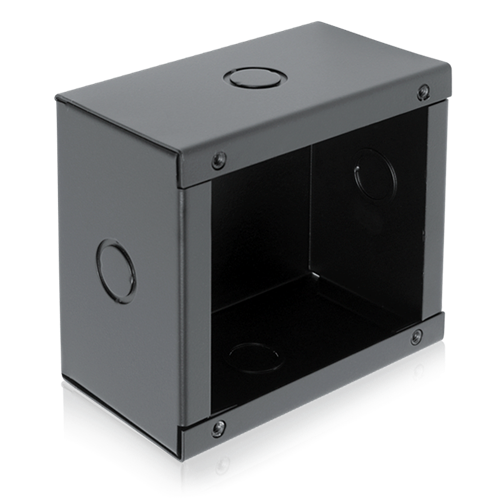

Vandal Proof Recessed Backboxes for VPVT Series Stations

VP-77
Availability: In stock
Your price (USD): $41.99
  • BAA
  • TAA
  • Vandal Proof
    DESCRIPTION

    VPVT-PB Series vandal proof speaker station withstand damage caused from abuse, moisture, corrosion, dust, vibration and temperature extremes from 150° to -30°F. Station is available in 15 watt model with 12-gauge stainless steel plate mounted to the high efficiency VT Series compression driver. Patented 8 ohm driver with water-sealed die cast zinc housing and exponential sound projector is recognized for dependable performance and high intelligibility voice and signal transmission. Driver functions as a speaker and a microphone for hands-free remote station communication with a centrally located master control. VPVT-PB Series incorporates a vandal proof call switch with 3 amp contact rating for call-in signaling capability. Call switch is a heavy duty, momentary action push button flush mounted for security and durability. Station assemblies install with tamperproof, button-head breakaway screws to a recess mounting enclosure (order separately). VPVT-PB is 7 1/4"SQ (184mm) and mount to enclosure Model VP-77 size 5 1/2"W x 6 1/4"H x 3 1/2"D (159 x 140 x 90mm). The enclosure is 16-gauge CRS with a rust preventive coating.



    VPB-1A is a vandal resistant push switch intercom accessory mounted to a single gang size 12-gauge stainless steel plate. Utilize assembly in conjunction with VPVT and VPCS stations

    or as a stand alone signaling device when a separate or remotely located call origination button is desired. Switch is a SPST normally open circuit with 3 amp contact rating. Vandal proof hardware installs using a 6–32 holt-head driver bit for a standard 1/4" nut driver.

    Bit may be ordered separately. Order Model HX56-6D.

    FEATURES
    • Damage Resistant Intercom and Paging Loudspeakers for Indoor or Outdoor Installation Provide Protected High Intelligibility Communication
    • Operational Flexibility of Stations Equipped With Vandal Proof Call/Signal Origination Switch or Optional Stand Alone Push switch Accessory
    • Proven Performance Reliability of the Patented VT Series Environment Resistant Compression Driver

    SPECIFICATIONS
    Height 6 1/4" (15.88 cm)
    Width 5 1/2" (13.97 cm)
    Depth 3 1/2" (8.89 cm)
    Shipping Weight 2.50 lbs (1.13 kgs)

    SUPPORT FILES
    SL3.1472
    CAD Drawing
    VP-77
