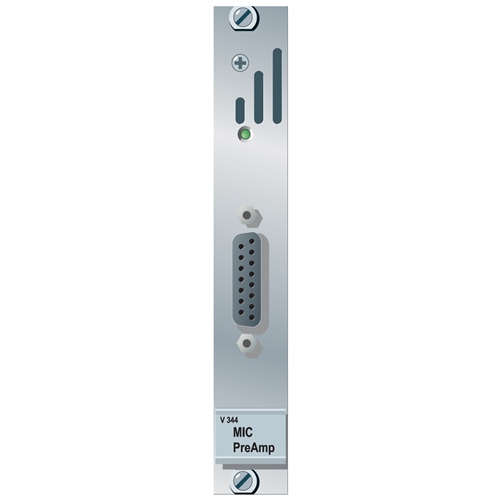

Microphone Pre-Amp Input 4-CH 24 BIT

V344
    DESCRIPTION

    The plug-in card V344 is a 4-channel remote-controlled microphone pre-amp for the input of analog audio signals into the VADIS system.


    FEATURES
    • 4 Channel Microphone Input Card
    • Designed for Use in the V212C-HDD and V888 VADIS Frames

    SPECIFICATIONS
    Input channels 4, electronically balanced
    Connector Type D-SUB 15-pin, female
    Phantom Voltage 48 V typ.
    Resolution 24 bit
    Sampling frequency 44.1 kHz or 48 kHz
    Input impedance 5 kΩ
    Power Consumption 1.1 A typ. @ +5 V
