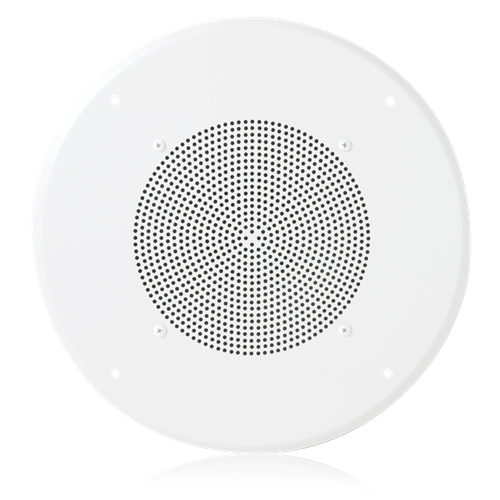

8" Dual Voice Coil In-Ceiling Loudspeaker for Fire Signaling with 5-Watt 70V Transformer and U51-8 Baffle

UKT70-2C-U51-8

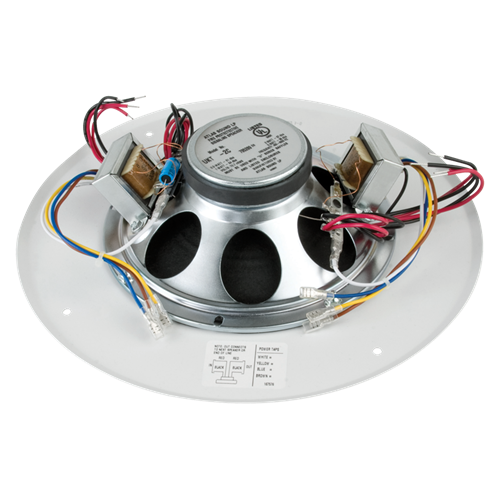

AtlasIED's UKT70-2C-U51-8 are 8" diameter dual voice coil loudspeakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, factory-mounted 70.7V transformer, 6" color-coded leads, DC blocking capacitor and a 51-8 baffle.
To comply with UL requirements, loudspeaker packages must be used with UL-approved enclosures

FEATURES

Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers

Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)

Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements

Selection of UL Approved, Companion Enclosures is Offered

UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response

Dual 1" Voice Coils

SPECIFICATIONS

Frequency Response	60Hz - 8kHz
Sensitivity	94dB Peak, 91dB Avg.
Power Taps	.5, 1, 2, & 5 Watts
Depth	2 7/8" (7.3025 cm)
Diameter	8" (20.32 cm)
Safety Listed	1480

SUPPORT FILES

Data Sheet

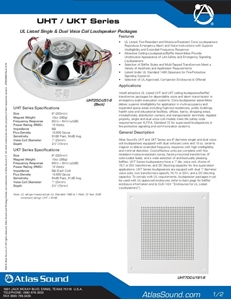

UHT_UKT Data Sheet (2 pages)

View | Download
