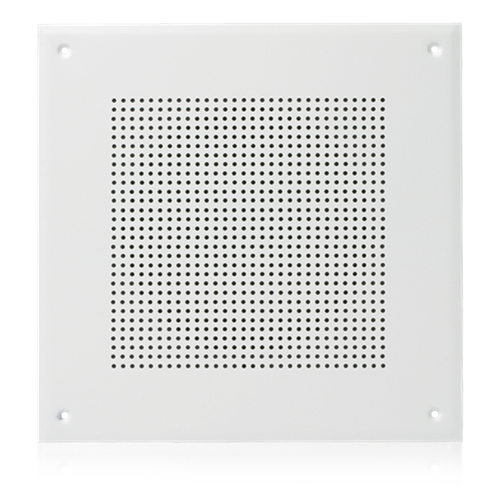

8" Dual Voice Coil In-Ceiling Speaker for Fire Signaling with 5-Watt 70V Transformer and U161-8 Baffle

Name: Dual Voice In-Ceiling Speaker Coil for Fire Signaling
Brand: AtlasIED
SKU: UKT70-2C-U161-8
Rating: 5 (5 reviews)

UKT70-2C-U161-8

Availability: In stock

Your Price:

$167.99

DESCRIPTION

AtlasIED's UKT70-2C-U161-8 are 8" diameter dual voice coil speakers equipped with dual (whizzer) cone and 10 oz. ceramic magnet to deliver extended frequency response with high intelligibility and minimal distortion. Cost-effective units are complete with fire-retardant moisture-proof cones, dual factory-mounted 70.7V transformers, 6" color-coded leads, DC blocking capacitors and a 161-8 baffle.
To comply with UL requirements, speaker packages must be used with UL-approved enclosures

Features

Attractive Ceiling-Loudspeaker/Baffle Assemblies Provide Unobtrusive Appearance of Life Safety and Emergency Signaling Loudspeakers
Listed Under UL Standard 1480 (Speakers for Fire-Protective Signaling Systems)
Selection of Baffle Styles and Multi-Tapped Transformers Meet a Variety of Aesthetic and Application Requirements
Selection of UL Approved, Companion Enclosures is Offered
UL Listed, Fire-Retardant and Moisture-Proof Cone Loudspeakers Reproduce Emergency Alarm and Voice Instructions with Superior Intelligibility and Extended Frequency Response
Dual 1" Voice Coils

SPECIFICATIONS

Frequency Response	60Hz - 8kHz
Sensitivity	94dB Peak, 91dB Avg.
Power Taps	.5, 1, 2, & 5 Watts
Depth	2 7/8" (7.3025 cm)
Diameter	8" (20.32 cm)
Safety Listed	1480
Warranty Period	60 months from date of purchase

SUPPORT FILES

UHT / UKT Series Datasheet (2 pages)

View | Download

UHT / UKT Series Datasheet (2 pages)

View | Download
