15" 2-Way Passive Portable Loudspeaker

SMP-15

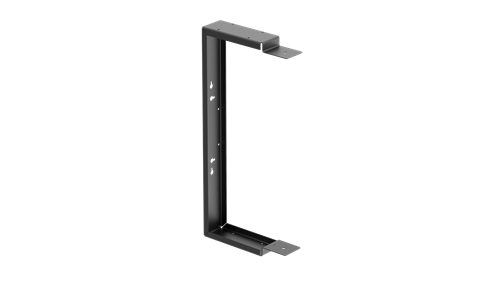

  • Mount Sold Separately
  • 90°H x 40°V Coverage
  • Non-Powered

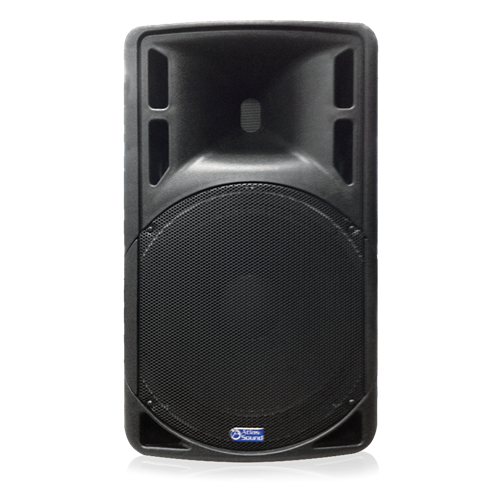

    The AtlasIED SMP-15 is a 2-way passive loudspeaker that includes a single 15" woofer and a high frequency, horn style compression driver. While most commonly used as main loudspeakers, the wide frequency response and adjustability of this series make them ideal for use as stage monitor loudspeakers for concerts or productions. The SMP-15 is a passive models that features the same 2-way design as the powered version but is designed to be used in conjunction with the powered SMA model. Each cabinet includes a Speak-ON™ connector for connecting to the powered version making them easy to install and share a source with.

    FEATURES

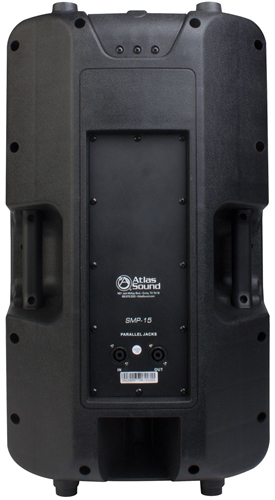

    Speak-ON™ Input Connection
    Easy Grip Handles on Top and 2 Sides
    Includes Integral 1 3⁄8" Pole Socket for Speaker Stand Mounting, Atlas Sound SS500E
    High Performance High Frequency Compression Driver
    Die-Cast Frame Low Frequency Driver
    Rugged Injection Molded Polypropylene Enclosure
    SPECIFICATIONS
    Power Rating 300 Watts (RMS)
    Sensitivity 98.5dB
    Frequency Response 69Hz - 16.5kHz
    Dispersion 90° x 40°
    Height 27.36" (695mm)
    Width 16.06" (408mm)
    Depth 13.62" (346mm)
    Weight 39 lbs. (17.7kg)
    Finish Black Textured Injection Molded Polypropylene
    SUPPORT FILES

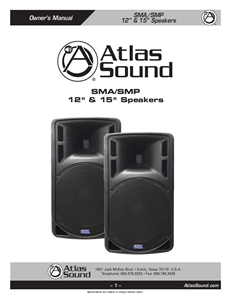

    Owners Manual
    ATS004724 SMA_SMP Owners Manual Final (12 pages)
