12" 2-Way Passive Portable Speaker

Availability: In stock
Your Price:
  • Mount Sold Separately
  • 90°H x 40°V Coverage
  • Non-Powered

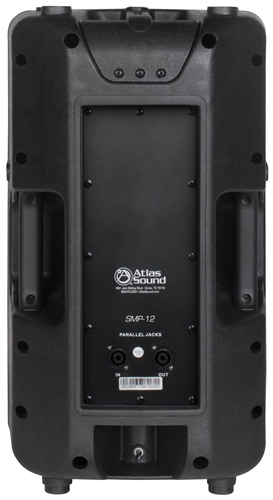

    The AtlasIED SMP-12 is a 2-way passive speaker that includes a single 12" woofer and a high frequency, horn style compression driver. While most commonly used as main speakers, the wide frequency response and adjustability of this series make them ideal for use as stage monitor speakers for concerts or productions. The SMP-12 is a passive models that features the same 2-way design as the powered version but is designed to be used in conjunction with the powered SMA model. Each cabinet includes a Speak-ON™ connector for connecting to the powered version making them easy to install and share a source with.

    • High Performance High Frequency Compression Driver
    • Die-Cast Frame Low Frequency Driver
    • Rugged Injection Molded Polypropylene Enclosure
    • Includes Integral 1 3⁄8" Pole Socket for Speaker Stand Mounting, Atlas Sound SS500E
    • Easy Grip Handles on Top and 2 Sides
    • Speak-ON™ Input Connection

    Power Rating 250 Watts (RMS)
    Dispersion 90° x 40°
    Frequency Response 77Hz – 17.5kHz
    Sensitivity 97dB
    Height 23.43" (595mm)
    Width 12.99" (330mm)
    Depth 11.69" (297mm)
    Weight 29 lbs. (17.7kg)
    Finish Black Textured Injection Molded Polypropylene
    Warranty Period 36 months from date of purchase

    SMA/SMP Owners Manual (12 pages) SMA/SMP Owners Manual (12 pages)
