4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer in Black or White

SM42T-B 3_4 front view

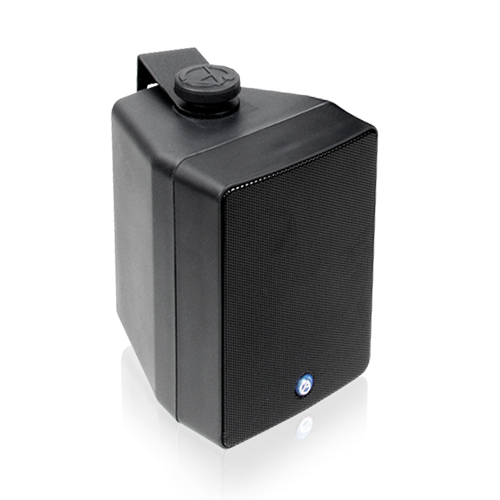

4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer (Black)
SKU: SM42T-B
Availability: In stock
Your Price:
$151.99/each
Must purchase in multiples of 2
SM42T-WH front view 3_4

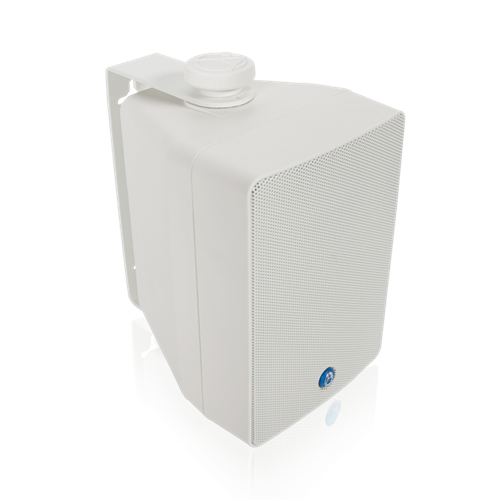

4" 2-Way All Weather Speaker with 16-Watt 70V/100V Transformer (White)
SKU: SM42T-WH
Availability: In stock
Your Price:
$151.99/each
Must purchase in multiples of 2
  • CUL
  • IP33
  • 4OHM8OHMCAPABLE
  • 90°H x 90°V Coverage
  • Non-Powered
  • 70V100VCAPABLE
    DESCRIPTION

    All AtlasIED Strategy Series speaker systems are designed to provide high fidelity, long life and installation convenience for commercial and residential applications. Because of their weather-resistant properties they are perfect for use indoors or out. The SM42T includes a 4" woofer and 1" tweeter as well as an integrated 70.7V / 100V transformer and 8Ω bypass for direct coupled applications.

    Use surface-mount AtlasIED SM42T Series speaker systems for commercial, professional and residential applications or where high-fidelity sound and weather-resistance is desired. Full-range frequency response makes these systems ideal for indoor and outdoor installation, in monaural and stereo foreground or background music systems, and for applications in boutiques/shops, restaurants/cafes, corporate AV applications and houses of worship. Multi-position, C-shaped mounting bracket and rugged construction provide optimum installation flexibility and assurance of long-term service.


    Features
    • 1" Ferrofluid™ Cooled Dome Tweeter & Highly Efficient 4" Polypropylene Woofer
    • All 1/4"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
    • Atlas Sound POLYGUARD™ High Frequency Protection Circuit
    • Available in Black or White
    • Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
    • Five-Year Warranty

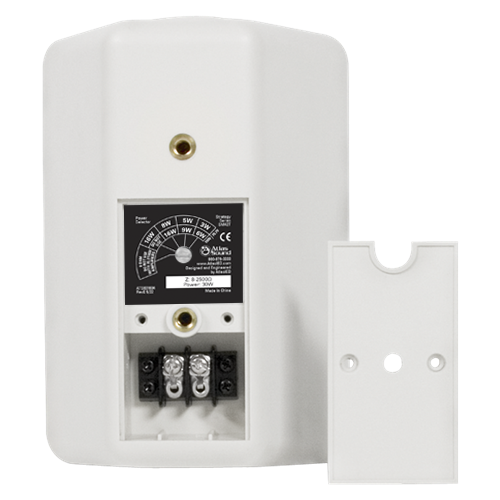

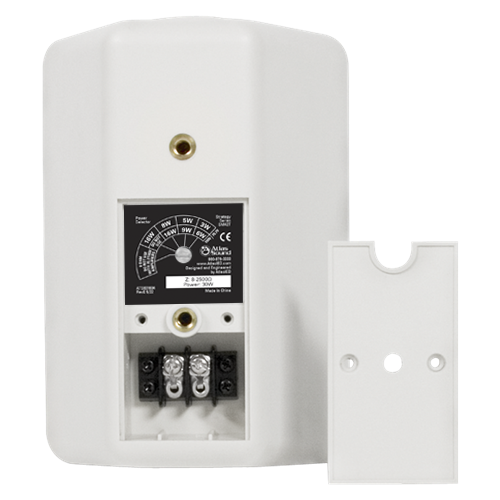

    • Screwdriver Adjustable 16-Watt 70.7V/100V Transformer (may be bypassed for 8-ohm operation)
    • TRX WAVEGUIDE™- Constant Directivity Style High Frequency Wave Guide System
    • Weather-Resistant Construction for Year-Round Indoor or Outdoor Use
    • OMNIMOUNT™ Compatible
    • UL Certified, Safety Listed to UL1480A

    SPECIFICATIONS
    Power Taps 3, 5, 8, & 16-Watt and 8Ω
    Speaker Type Surface Mount
    Sensitivity 88dB
    Frequency Response 115Hz - 16kHz
    Height 7" (17.78 cm)
    Depth 5 15/16" (15.03 cm)
    Width 5" (12.7 cm)
    Shipping Weight 5.00 lbs (2.27 kgs)
    Safety Listed UL 1480A
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    SM42T EASE DATA SM42T EASE DATA
    SM42T EASE DATA SM42T EASE DATA
    SM42T SM42T
    SM42T-B Revit Drawing SM42T-B Revit Drawing
    SM42T CLF DATA SM42T CLF DATA
    SM42T-B(WH) Datasheet SM42T-B(WH) Datasheet
    AtlasIED_CE_COC_SM_Series_Speakers (1 page) AtlasIED_CE_COC_SM_Series_Speakers (1 page)
    Speaker Placement Tool

    The AtlasIED Speaker Placement Tool is designed to make it easy to select the proper positioning of speakers in a given room. Choose your AtlasIED speaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    This tool is not suitable for sound masking. For assistance with sound masking, please complete our Sound Making Design Request form

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
    Your browser does not support the HTML5 canvas tag.
    RECOMMENDED

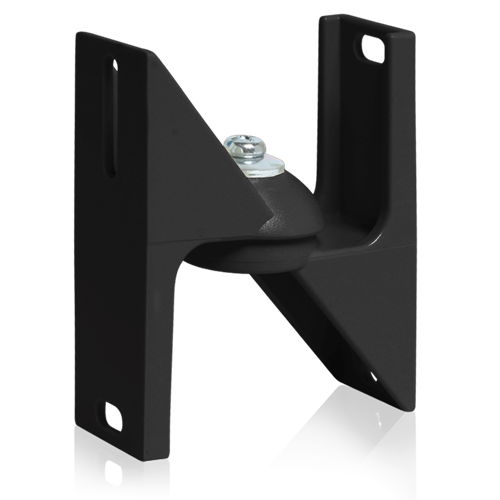

    Optional Ball Bracket for SM42 (Black)
