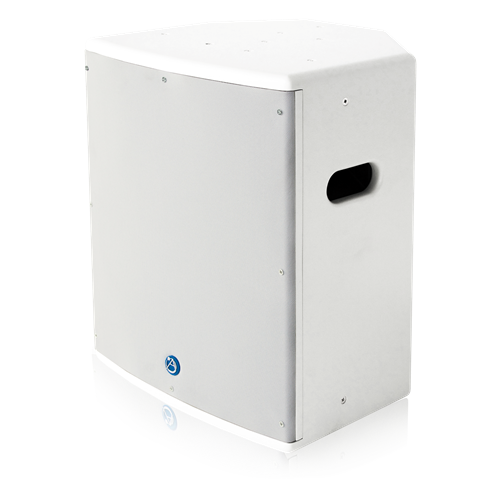

12" Surface Mount Subwoofer with 60-Watt 70V/100V Transformer - White

SM12SUB70-W
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $674.99
  • Mount Sold Separately
  • CE
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
    DESCRIPTION

    The AtlasIED SM12SUB70 is designed for 8Ω and 70.7V distributed audio applications where low frequency enhancement is desired. This model features a unique compact cabinet design with multiple ¼"-20 inserts to allow easy suspension or wall mounting.

    The SM12SUB70 includes a built in 18dB / octave three-pole passive crossover network coupled to a long-excursion 12" woofer housed in multi-angle wood enclosure system. The passive crossover eliminates the need for a separate crossover or dedicated amplifier to power the speaker.

    A premium 70.7V transformer allows the SM12SUB70 to be paralleled with any 70.7V commercial audio system to provide extended low frequency response and more overall audio impact for foreground music systems.
    (Unit is also 8Ω compatible).


    FEATURES
    • Multiple ¼"-20 Inserts, Provide Fly Points for a Variety of Mounting Configurations
    • Includes Internal, High Efficiency, 60 Watt 70.7V/100V Transformer (May Be Bypassed for 8Ω Operation)

    • Barrier Strip Input for 70.7V/100V/8Ω or Parallel 4 Pole Speak-ON™ Input,
      (8Ω Only)
    • 250W RMS Power Handling
    • Unique Input Panel Allows Use of Standard 4" Square Box Cover for Applications Where Flex Conduit is Required for Termination
    • Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly

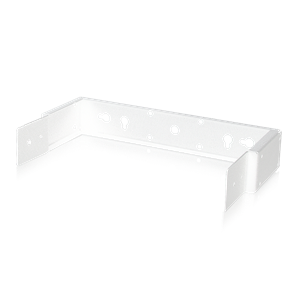

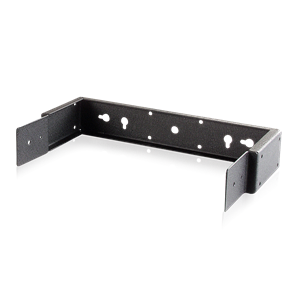

    • Optional Bracket for Wall Mounting
    • Omnimount™ Compatible

    SPECIFICATIONS
    Frequency Response 45Hz - 125Hz
    Sensitivity 89dB
    Power Taps 7.5, 15, 30, 60
    Speaker Type Sub
    Dispersion Omni
    Height 19" (483mm)
    Width 14 1/2" (368mm)
    Depth 14 1/16" (357mm)
    Shipping Weight 26 lbs (11.79 kgs)

    SUPPORT FILES
    Installation Sheet
    Installation Sheet

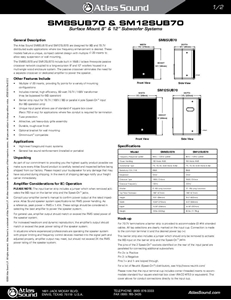

    ATS001614 SM8SUB70 - SM12SUB70 Install RevE
    CAD Drawing
    SM12SUB70
