Strategically Hidden Speaker with 32-Watt 70/100V Transformer and Enclosure

SHS-6T2
Availability: Temporarily Out of Stock - Product will ship once in stock.
Your price (USD): $233.99
  • 70V / 100V Operation
  • Paintable
  • Non-Powered
    DESCRIPTION

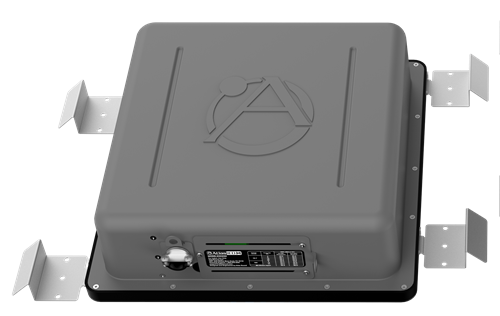

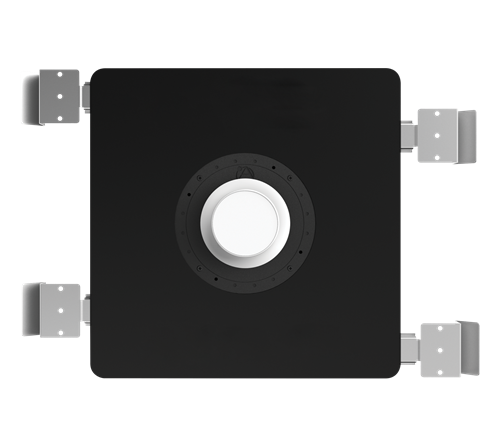

    The SHS-6T2 is an industry-first strategically hidden ceiling speaker. It is designed to blend into the cosmetic of any ceiling while retaining optimal sound performance. The SHS series is completely different with a focus on aesthetics without sacrificing performance. It is the perfect speaker for paging/BGM or sound masking in environments that want to retain their aesthetic charm.

    The SHS Series incorporates a radically different waveguide design than any other ceiling speaker. Inside its concealed enclosure is a 2-way driver that provides high-definition sound. As the sound exits the two-way transducers, both pass through a patented adaptive diffuser lens for smooth and uniform frequency response throughout its intended ultra-wide coverage. Through years of research and design its acoustic frequencies are radiated evenly, diffusing away bothersome “hot spots” common to standard speakers making it a great solution for paging and background music as well as applications including sound masking.

    The SHS ships with the ability to utilize the Adaptive Dispersion Lens in three different configurations for various applications. Sound masking installations and installations with low ceilings (less than 10') should use the 4mm dispersion lens with solid panel attached. Installations with ceilings between 10' and 14' should use the 8mm dispersion lens with the solid panel attached. Installations with ceiling heights above 14' or in applications that require maximum intelligibility, the 4mm dispersion lens should be used with the perforated panel attached.

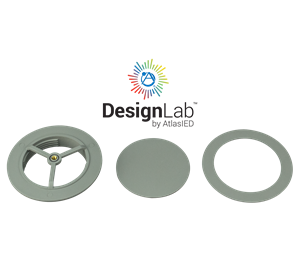

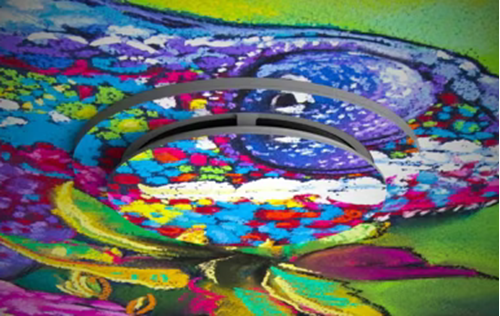

    Its concealed design is achieved by its new, patented waveguide design. Visually, only a 3-inch diameter lens and a micro trim ring are visible on the front of the ceiling. The SHS can become a true chameleon via AtlasIED’s custom match process. For a small fee, our state of the art UV printer can custom match the color of a ceiling via an RAL paint code or our advanced match process allows scanning of the ceiling material to match any design or pattern. This custom print service provides a lens and trim ring that will seamlessly match the color, design, and/or surface material of the ceiling.

    The SHS is an installer’s dream with an integrated rail system. All the installation parts are built into the enclosure including the tile rails, which require no rail screws for installation. Simply pull the four rails out from the enclosure and it’s ready for install, drill a three-inch hole in the ceiling tile, set the speaker through the hole, and snap on the adaptive dispersion lens.


    FEATURES
    • Virtually Invisible Design Blends Into Any Ceiling

    • Patented Waveguide with User Selectable Adaptive Dispersion Lenses

    • Self Contained Unit Includes Loudspeaker, Enclosure, and Adjustable Tile Rails

    • Sealed Enclosure Provides Optimal Bass Response

    • Optional Color Match Via AtlasIED Custom Print Services


    SPECIFICATIONS
    Speaker Type Coaxial
    Sensitivity 86dB (1W/1m)
    Power Taps 4, 8, 16, 32-Watts (70.7V)
    Power Taps 8, 16, 32-Watts (100V)
    RMS Power (Watts) 75 @ 4Ω
    Frequency Response 100Hz - 15kHz (DSP Corrected)
    Dispersion 130°, 2kHz Octave Band with 4mm Dispersion Lens
    Cut Out Diameter 2.75" (69.85mm)
    Dimensions (HxWxD) 12.73" (323.3mm) x 12.73" (323.3mm) x 3.92" (99.6mm)

    SUPPORT FILES
    Data Sheet
    SHS-6T2 Data Sheet
    Installation Sheet
    SHS-6T2 Installation Sheet
    CAD Drawing
    CAD File


    Speaker Placement Tool
