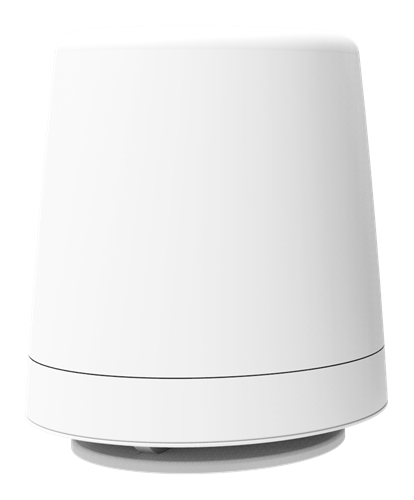

Multi-function Strategically Hidden Speaker (White) - Ceiling-Only Configuration - Contractors Pack of 24

SHS-3T2WCP
Availability: In stock
Your Price:
$3,249.99
  • UL1480/2043
  • 70V / 100V Operation
  • Paintable
  • Non-Powered
  • DesignLab
    DESCRIPTION

    The SHS-3T2WCP Contractor Pack, is a bulk pack option of 24 white SHS-3T2 units when only In-Ceiling installation is required. The SHS-3T2 includes a single full-ranger driver housed in a multifunction enclosure providing high-definition sound. The transducer is attached to the SHS’s tunnel waveguide to take the sound performance to the next level. As the sound exits the waveguide, it travels through the patented adaptive dispersion lens that acts as a phase plug. The acoustic result is all frequencies are radiated evenly and annoying “hot spots” found directly below the speakers are minimized. This makes the SHS not only a great solution for sound and music reinforcement, but also a great sound masking speaker as well.

    The SHS-3T2WCP units can be in-Ceiling mounted. Once installed in the ceiling, the speaker is concealed using a patented 3" diameter dispersion lens with a micro trim ring. Once installed, the visual appearance is reduced to the size of a high-end ceiling sprinkler head. The SHS-3T2 can become a true chameleon through AtlasIED’s DesignLab. AtlasIED offers custom color matching via UV printer that enables an integrator to submit an image or sample of the ceiling. Then, using a state-of-the-art print service, a custom lens and trim ring that matches the submitted sample will be shipped to the customer. For more information about the custom DesignLab process, visit www.atlasied.com/shs-cust.

    The SHS-3T2 ships with the ability to utilize the Adaptive Dispersion Lens in three different configurations for various applications. Sound masking installations and installations with low ceilings (less than 10') should use the 4mm dispersion lens with solid panel attached.

    Installations with ceilings between 10' and 14' should use the 8mm dispersion lens with the solid panel attached. Installations with ceiling heights above 14' or in applications that require maximum intelligibility, the 4mm direct fire lens should be used with the perforated panel attached.

    The SHS-3T2 can be connected to any 70V / 100V amplifier using standard 2-conductor commercial speaker wire with the included removable 4-pole euro style connector. Additionally, when used with an AtlasIED Z-Series High-Definition Acoustical System the speakers can be connected using Cat5e cable. Each SHS-3T2 features "in" and "out" Cat5e terminals making it easy to daisy chain speakers to the Z-Series source unit.


    Features
    • Subtle Form & Design Blends Into Any Ceiling

    • Easy & Quick Installation

    • Patented Waveguide with User Selectable Adaptive Dispersion Lenses

    • Sealed Enclosure Provides Optimal Bass Response

    • Optional Color Match Process Via DesignLab™ by AtlasIED

    • Kit includes Cat5 cables

    SPECIFICATIONS
    Speaker Type 2.25" 2-Way
    Operating Range 140Hz - 20kHz
    Frequency Response 180Hz - 10kHz
    Dispersion 130°, 2kHz Octave Band
    Sensitivity 81.6dB (1W/1m)
    Power Taps 0.5, 1, 2, 4-Watts (70.7V)
    Power Taps 1, 2, 4, 8-Watt (100V)
    Dimensions (HxWxD) 4.3" x 3.62" (109.3mm x 91.8mm)
    Weight 0.85 lbs (0.39 kg) - 1.00 lbs (0.45 kg) with Flange, 4mm solid diffuser, solid lens cover
    Shipping Dimensions 26.25" x 18.25" x 10" (667mm x 463mm x 254mm)
    Shipping Weight 45.95 lbs (19.9 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    SHS-3T2 Install Sheet (6 pages) SHS-3T2 Install Sheet (6 pages)
    SHS-3T2 Data Sheet (7 pages) SHS-3T2 Data Sheet (7 pages)
    SHS-3T2 Revit Drawing (Ceiling Mount) SHS-3T2 Revit Drawing (Ceiling Mount)
    SHS-3T2WCP CAD Drawing SHS-3T2WCP CAD Drawing
