SHS-3T2 Tile Bridge

SHS-3T2-TB

Your Price:
$25.99
    DESCRIPTION

    The SHS-3T2-TB is designed for use with the SHS-3T2 strategically hidden speaker series in applications with ceiling tile or material that is less than 0.5" (13mm) thick. This bridge kit ensures the diffuser can properly attach to the SHS with no gap at the ceiling tile.

    Features
    • Constructed of 22GA Galvanized Steel
    • Ensures Proper Spacing for Sound Chamber and Diffuser Lens in Materials Thinner Than 0.5
    SPECIFICATIONS
    Height 23.7" (601.98 mm)
    Width 8" (203.2mm)
    Depth 0.5" (12.7mm)
    Hole Diameter 2.785" (70.74 mm)
    Weight 1.70 lbs (0.77 kgs)
    SUPPORT FILES

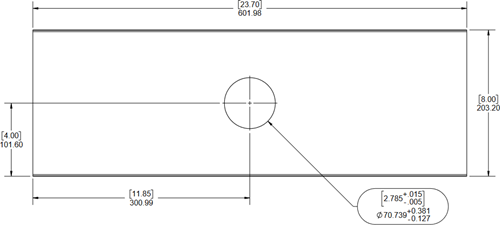

    SHS-3T2 CAD Drawing (1 page) SHS-3T2 CAD Drawing (1 page)
    View | Download
