8" Dual Cone In-Ceiling Loudspeaker with 25V/70V 5-Watt Transformer and 62-8 Baffle with Volume Control

SD72WV
  • HYFIDROPHOBIC_OPTIONAL
  • AMATHOPHOBIC_OPTIONAL
  • CETL
  • 70V100VCAPABLE

    The loudspeaker used in the SD72WV is the next generation of Atlas high performance cone loudspeakers, very similar to the preceding C-Series loudspeakers. The similarity in the sonic qualities ensures that contractors and designers who have worked with the AtlasIED C-Series in the past will know exactly what to expect when they use the SD72WV.

    Model SD72WV is a 25 watt 8" (205mm) loudspeaker with a 10oz. (260g) ceramic magnet. It includes a curvelinear, treated paper cone for lower harmonic distortion. The loudspeaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation. Model SD72WV operates within a frequency response range of 45Hz-19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Package includes factory installed 25/70.7V line matching transformer with tap selections ranging from .25 to 5 watts.

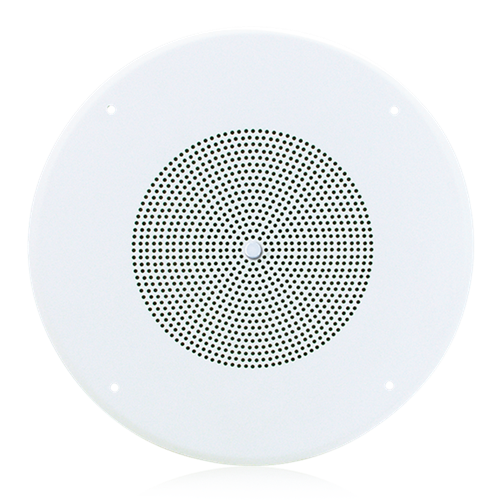

    The SD72WV includes a factory installed CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The SD72WV baffle features standard mounting holes to accommodate the majority of AtlasIED 8" tile bridges, mounting rings and enclosures.

    When specifying mounting hardware be advised that the dimensions of the SD72WV baffle match the AtlasIED Model 62-8. The baffle finish is white powder coat epoxy. The baffle mounted volume control has a 5 watt audio rating and is factory wired to the voice coil. Units are shipped assembled, ready for installation.

    Features
    10oz Speaker Provides Familiar Response & Performance
    Attractive CRS White Powder Coat Baffle with Center Mounted Volume Control
    Incorporate or Remove Volume Control Knob to Suit Application Requirements
    Individually Packaged for Stocking & Ordering Convenience
    Quality 5 Watt-Dual Voltage Transformer
    ETL Certified, Safety Listed to UL1480 and UL2043.
    Tech Specs
    Speaker Type Treated Paper
    Sensitivity 97dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .25, .5, 1, 2, & 5 Watts
    Dispersion 105° (2kHz Octave Band, -6dB Points)
    Diameter 8 1/8" (20.6375 cm)
    Safety Listed 1480, 2043
    Support Files
    Data Sheet SD72 Series Data Sheet (3 pages) View | Download
    Installation Sheet ATS004381 SD72, SD72W, SD72WV Install Sheet (1 page) View | Download
    CAD Drawing SD72WV CAD Drawing Download
