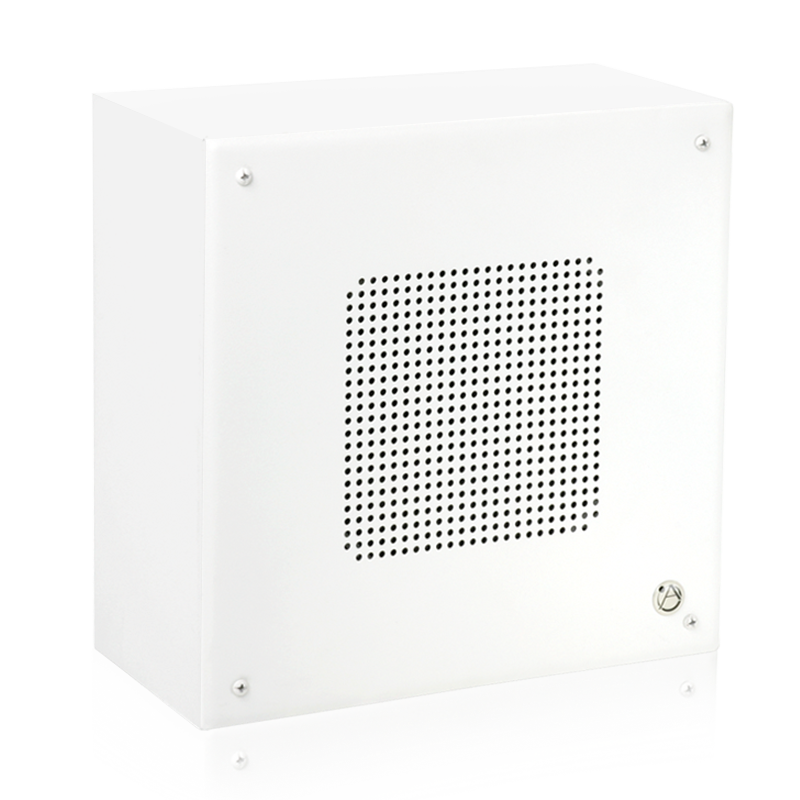

8" Open Ceiling Surface Mount Speaker with Enclosure and 4-Watt 25V/70V Transformer

SBMS
Availability: In stock
Your price (USD): $97.99
  • UL Listed
  • 70V100VCAPABLE
    DESCRIPTION
    The SBMS is ideal for "big box" retail stores whose special design calls for an open beam ceiling.

    To get customers to pay attention to the announcements of specials and the employees to respond to general paging—intelligibility is a top design goal. The high efficiency of the specially designed 8" speaker included in the SBMS package fills this requirement.

    The SBMS a square design, which blends in with the overall aesthetic of an open beam ceilings.

    The SBMS is infinitely flexible, complying with a variety of conduit requirements. Integral knockouts facilitate 1/2" and 3/4" conduit where required by code while integral "romex" style connector simplifies installation for applications where conduit is not required at all.

    The SBMS also includes a 25V/70.7V internal transformer and is finished in neutral white epoxy for simplified stocking and ordering.


    FEATURES
    • Convenient Lead Wire Extensions Assure Expedited Field Connection
    • Durable White Powder Coat Finish
    • Easy-to-Install Loudspeaker Package Includes Provisions for Fast Clamp-Mount Installation to I-Beams and Girders
    • Package Includes an 8" Dual-Cone Loudspeaker with a Pre-Mounted Transformer, Baffle and Enclosure Equipped with Clamp Mounts
    • UL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Speaker Type 8" Dual Cone
    Sensitivity 92dB
    Frequency Response 85Hz - 20kHz
    Power Taps .25, .5, 1, 2, & 4 Watts
    Dispersion 105°
    Safety Listed 1480

    SUPPORT FILES

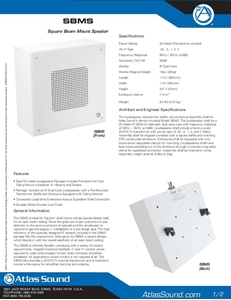

    Data Sheet
    Data Sheet
    EASE File

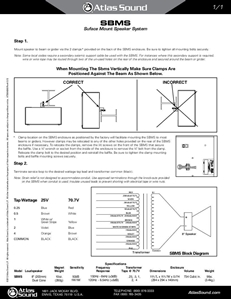

    Installation Sheet
    ATS004380_SBMS_Install_Sheet
    CAD Drawing
    SBMS
