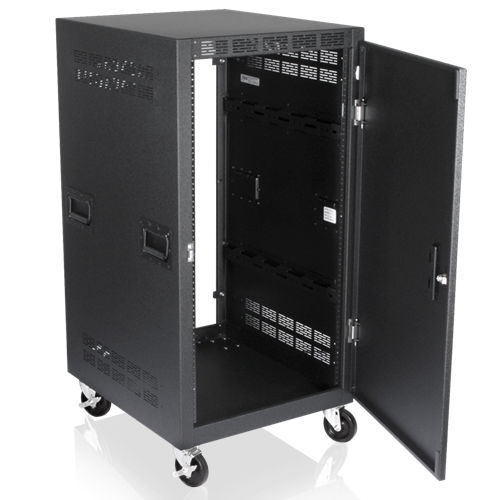

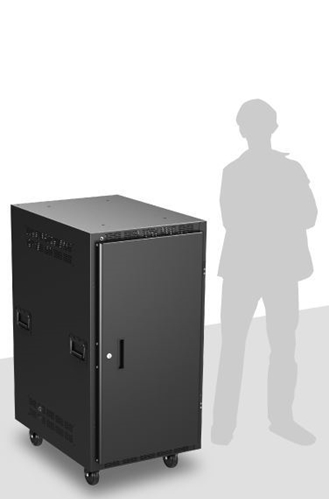

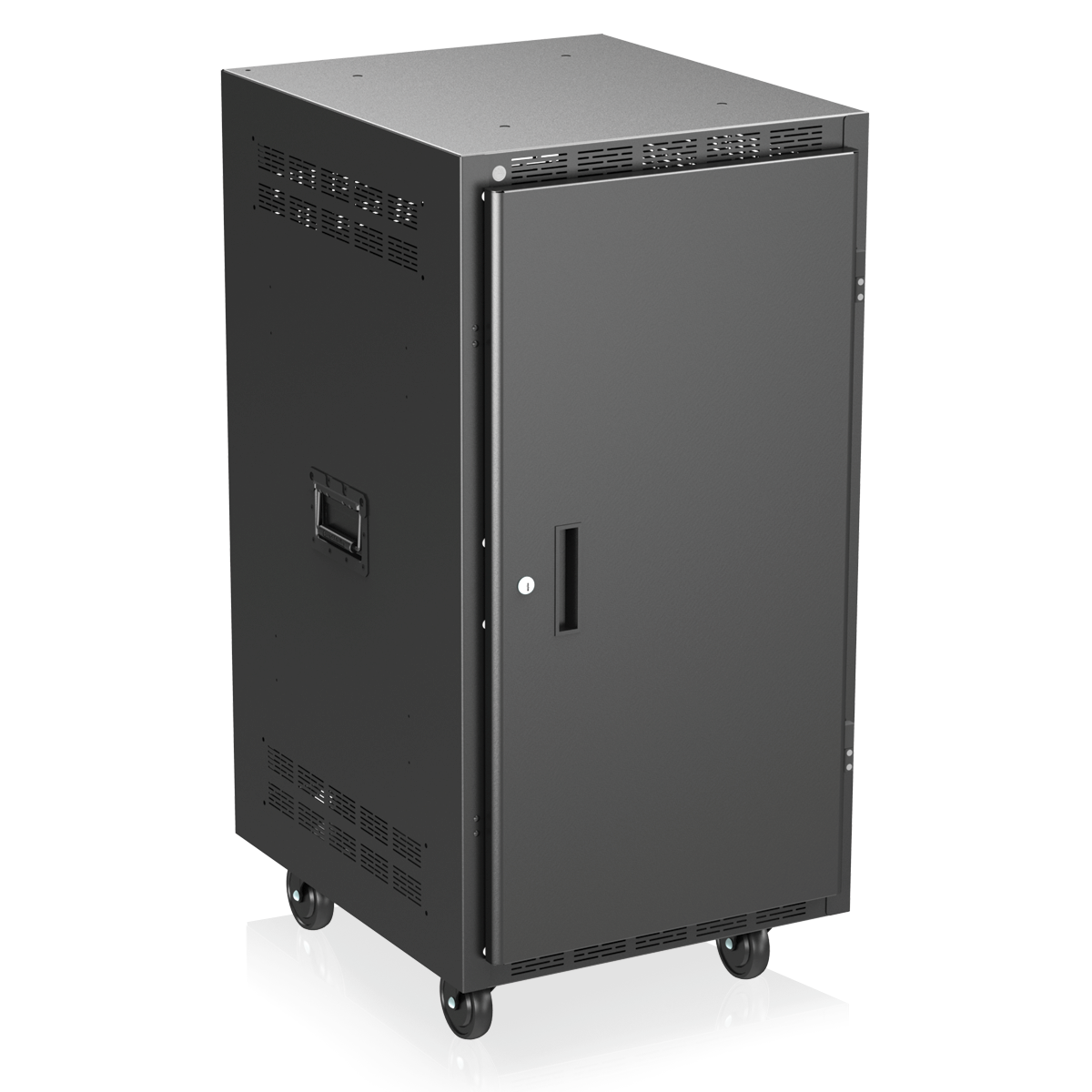

30 inch Deep, 21RU Mobile Equipment Rack Includes: Casters, Side Handles, and Solid Doors

RX21-30SFD
Availability: Built To Order
Your Price:
$1,442.99
  • BAA
  • TAA
    DESCRIPTION
    The RX21-25SFD mobile cabinet is ruggedly constructed of 16-gauge CRS and include heavy-duty casters. Equipped with a front pair of 11-gauge CRS adjustable mounting rails tapped 10–32 on standard E.I.A. 5/8"- 5/8"-1/2" spacing.

    Optional RR21 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable.

    The RX21 features the additional benefit of having the supports positioned 19" apart to accept standard panel width accessories mounted in vertical orientation.

    Cabinet is 30" deep and has a vertical panel space height of 36 7/8" It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.

    Easy wiring access is provided through three wire isolation holes (two, 1 1/2" diameter, and one oblong 1 1/2" x 3") in the rear base flange.

    The units’ four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.

    Also include vented and removable locking doors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to
    1 1/2" from the front of the rail.

    Cabinet is finished in #962 black epoxy.

    Features
    • 16-Gauge CRS Frame Manufactured to E.I.A. Standards
    • Four, 4" Heavy-Duty Casters (175 lb. cap./ea.)
    • Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
    • Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
    • Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
    • Removable Rear Door (Right or Left-Hand Hinging) included
    • RR21 Optional Rear Mounting Rails Available
    • Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
    • Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
    • Three Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access
    • Welded Frame for Long-Lasting Durability

    SPECIFICATIONS
    Rack Units 21
    Height 45 3/4" (116.21 cm)
    Width 22 5/16" (56.68 cm)
    Depth 25 1/2" (64.77 cm)
    Usable Depth 28.5" (724mm)
    Shipping Weight 121.00 lbs (54.88 kgs)
    Warranty Period 60 months from date of purchase
