2 Socket Modular Relay Pack

  • BAA
  • TAA

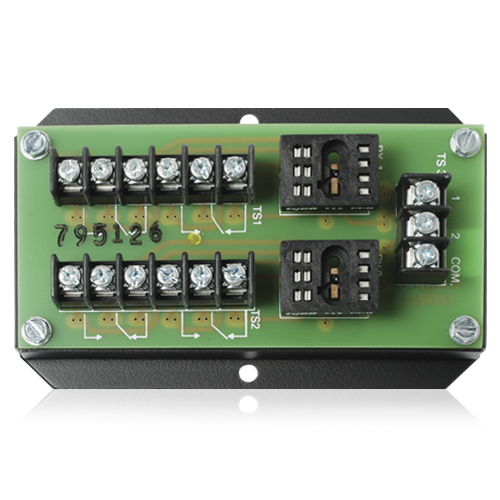

    Atlas Model RPM-2 provides a convenient and economical way to wire 24V relays into speaker switching circuits, zone paging applications, etc. All relay contacts are clearly silk screened on each PC board for easy circuit wiring, and are terminated on barrier-type screw terminals to prevent accidental shorting. Includes two sided tape for mounting just about anywhere, or the RPM-2 can be bolted inside of rack cabinets.
    Order 24V relays, AtlasIED part numbers RLM-24 and RLM-24-5 separately.

    • Choose from Four Chassis Models
    • Easy to Install Relay Chassis
    • Modular Design Provides Configuration & Expansion Flexibility
    • Select 3 Amp or 5 Amp 24 VDC Relays

    Relay 2
    Height 15/16" (2.38252 cm)
    Width 4 3/4" (12.065 cm)
    Shipping Weight 0.50 lbs (0.23 kgs)
    Warranty Period 3 months from date of purchase

    Modular Relay Packs Datasheet (4 pages) Modular Relay Packs Datasheet (4 pages)
    RPM-2 RPM-2
