Caster Kit for 18 inch deep 100 & 200 Series Racks

Availability: In stock
Your Price:
  • BAA
  • TAA
    This caster kit is comprised of four, non-locking, 2 5/8" Dia. casters, and two, easy-to-install, mounting/support brackets. This Model accommodates the 18.5" deep 100/200 Series cabinets.

    The heavy-duty, 14-gauge CRS mounting/support brackets are 4" wide and are designed to be affixed beneath the cabinet’s bottom panel for front-to-back reinforcement. Brackets are .075" thick and feature two 1/2" downward flange on the inner edge, which provides additional structural support to the cabinet bottom.

    The zinc-plated swivel casters, which have an overall height of 3.75", feature 2 5/8" hard rubber tread wheels. Supports a load capacity of up to 1000 lbs.

    Brackets and casters mount directly to cabinets using supplied hardware. When in place, increases the cabinet’s overall height by 1.75". Brackets are finished in black.

    • 1000 Lb. Load Capacity Allows Maximum Equipment Installation
    • Caster Kits Allow Racks to be Ganged Together
    • Heavy-Duty Casters Enable "Easy-Roll" Movement
    • Provide Mobility for Atlas Sound 19" Wide x 18 1/2" Deep Cabinets

    Height 3 3/4" (9.525 cm)
    Width 4" (10.16 cm)
    Depth 18 1/2" (46.99 cm)
    Mounts 18" Deep 100 & 200
    Shipping Weight 12.35 lbs (5.60 kgs)
    Warranty Period 60 months from date of purchase

    19 19" Wide Cabinets Accessories Datasheet (1 page)

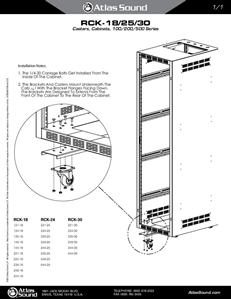

    RCK-18-25-30 Install Sheet (1 page) RCK-18-25-30 Install Sheet (1 page)
