AC Outlet Strip 5 outlets 15A

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: RAC-5B
Rating: 5 (5 reviews)

RAC-5B

DESCRIPTION

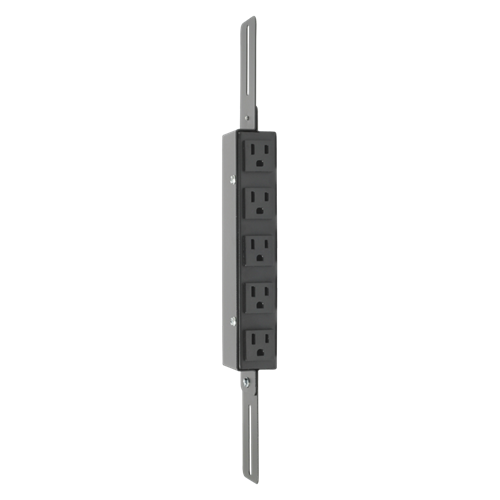

Slimline outlet strips provide convenient electrical access without utilizing valuable cabinet space. Compact housing installs between cabinet side panel and mounting rails to the horizontal frame. Housings are finished in black epoxy. Dimensions for the RAC-5 models are 16 1/8" L x 1 1/2" W x 2" D.

Features

5 Duplex Outlets - 15 Amp Capacity Total
For Use With Series 5K and Series 6 Enclosures That Utilize "Z" Style Rack Rail
Slimline Vertical Power Strip With 6" Pig Tails For Interfacing To Junction Boxes

SPECIFICATIONS

Height	16 1/8" (40.9575 cm)
Width	1 1/2" (3.81 cm)
Depth	2" (5.08 cm)
Shipping Weight	2.50 lbs (1.13 kgs)
Current Rating	15A
Light	No
Mounting Orientation	Vertical
Outlets	5
Warranty Period	12 months from date of purchase

SUPPORT FILES

Rack Outlet Strip Installation Instructions (2 pages)

View | Download
