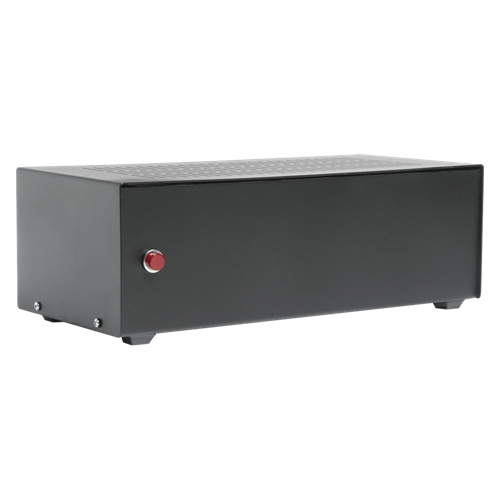

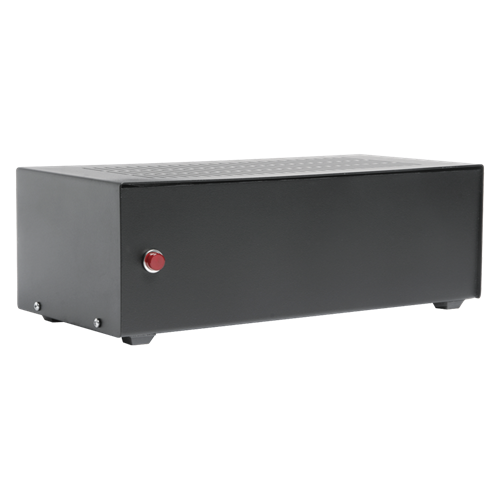

Regulated Power Supply 24V, 4A

PS24-4R

    DESCRIPTION

    This 24VDC 4A regulated power supply has been developed to perform under the application requirements and operational parameters of commonly used ranges in communications equipment. To guard against excessive line currents, this model is fuse protected in the primary. Barrier strip output terminals allow for wire-insertion ease and protect against shorted connections.


    Features
    • Choice of 10 Models in 12 and 24 Volt Regulated and Heavy-Duty Unregulated Versions
    • Compact Size is Ideal for Shelf, Wall, or Rack Mounting
    • Engineered Specifically to Meet the Application Requirements of the Commercial Sound Communications Industries, and Home Electronics
    • Optional Rack Mount Accessory Shelf (Model PS-RK) Allows Convenient Installation in 19" W Equipment Cabinets

    SPECIFICATIONS
    Input Power 105-125 VAC 60 Hz, 210 W
    Output Power 24 VDC 4 Amp
    Height 4 3/4" (12.065 cm)
    Width 13 1/4" (33.655 cm)
    Depth 6 1/4" (15.875 cm)
    Shipping Weight 16.50 lbs (7.48 kgs)
