General Purpose Power Supply 24/12/6V, 2A

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: PS24-20
Rating: 5 (5 reviews)

PS24-20

DESCRIPTION

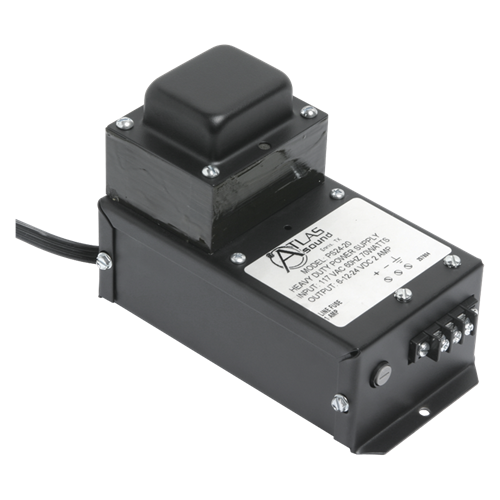

Compact and economical, the Atlas PS24-20 provides muli-voltage ouputs (jumper selectable) for general purpose applications where a regulated output is not necessary. This assembly comes complete with fused primary, barrier strip output terminals and a six foot line cord. FInished in black epoxy.

Features

Compact Size is Ideal for Shelf, Wall, or Rack Mounting
Engineered Specifically to Meet the Application Requirements of the Commercial Sound Communications Industries, and Home Electronics
Optional Rack Mount Accessory Shelf (Model PS-RK) Allows Convenient Installation in 19" W Equipment Cabinets
Three Output Voltages, 6, 12 and 24VDC @ 2A

SPECIFICATIONS

Input Power	117 VAC, @ 60 Hz, 70 Watts
Output Power	24, 12, 6 VDC 2 Amps
Height	3 5/8" (9.2075 cm)
Width	6 3/4" (17.145 cm)
Depth	4" (10.16 cm)
Shipping Weight	5.00 lbs (2.27 kgs)

SUPPORT FILES

PS24-20 DC Power Supply Installation Instructions (1 page)

View | Download

PS Series Datasheet (3 pages)

View | Download
