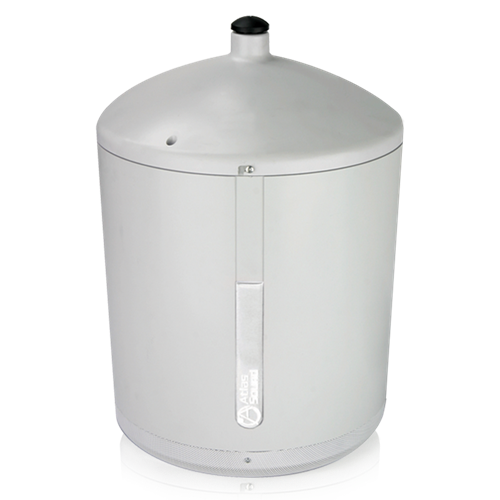

8" 2-way High Efficiency Pendent Loudspeaker with 8-Watt 70V Transformer - White

PM8GD-WH
  • IPX3
  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE

    Model PM8GD-WH uses the popular AtlasIED GD series coaxial driver to provide familiar response and high efficiency while retaining economy when high density loudspeaker counts are required in page only applications.

    Features
    70.7V Taps @ 1, 2, 4, 8 Watts and 8Ω Direct Input via Concealed Terminal Block
    8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band
    3 Meters of 2mm Cable & Mounting Hardware Included
    Compatible with Standard 3/4" Ceiling Fan Hardware
    Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations
    Tech Specs
    Speaker Type Coaxial (Treated Paper)
    Sensitivity 96dB Average
    Frequency Response 55Hz - 15kHz
    Dispersion 105° (2kHz Octave Band, -6dB Points)
    Height 16 5/8" (42.2148 cm)
    Shipping Weight 14.00 lbs (6.35 kgs)
    Support Files
    Data Sheet PM8GD Data Sheet (3 pages) View | Download
    Installation Sheet ATS004369_PM_Series_Install_Sheet (7 pages) View | Download
    Revit Drawing PM8 Series Revit Family Download
    Revit Drawing PM8GD-WH Revit Drawing Download
    CAD Drawing PM8 Series CAD File Download
    Loudspeaker Placement Tool

    The AtlasIED Loudspeaker Placement Tool is designed to make it easy to select the proper positioning of loudspeakers in a given room. Choose your AtlasIED loudspeaker and the transformer taps that you plan on using. Then input the room length, width, and ceiling height. Don’t forget to choose feet or meters as your unit of measure and the listener level. The results will tell you how many total speakers are required and how they need to be positioned to maximize the sound coverage in the space.

    Loudspeaker:
    Transformer Tap Selection (in Watts):
    Unit of Measure:
    Room Length:
    Room Width:
    Ceiling Height:
    Listener Level:
    Average distance from ceiling to ear level:

    # of Rows:
    Number of Columns:
    Total Loudspeakers Required:
    Loudspeaker Spacing:
    First Loudspeaker "x" Placement:
    First Loudspeaker "y" Placement:
    Selected Tap Max SPL in Direct Field:
    Variance to Edge of Coverage:
    Amplifier Power Required for Selected Tap:
    Max Tap SPL in Direct Field:
    Amplifier Power Required for Max Tap:
